Why Choose the IMO AB1/AP-3A Inductive Proximity Switch?

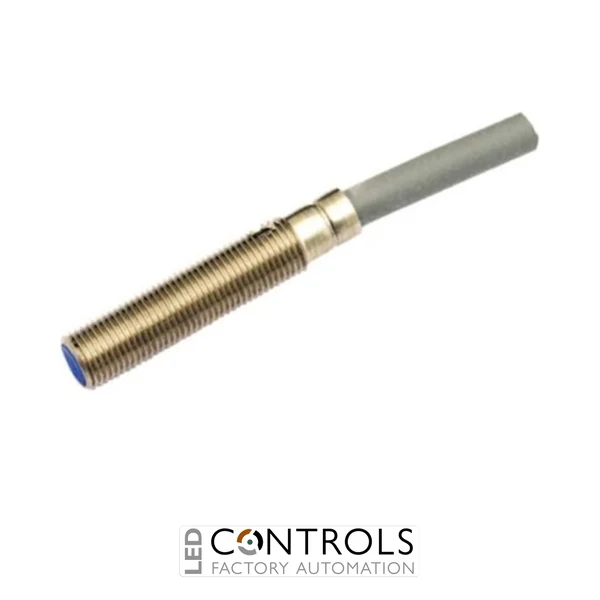

The IMO AB1/AP-3A is an ultra-compact M4 shielded inductive proximity switch designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Featuring a PNP normally open (NO) output, 1 mm nominal sensing distance and fixed 2 m PUR cable, it provides dependable position and presence sensing where installation space is limited.
The AB1/AP-3A uses an AISI 303 stainless steel M4 housing with a shielded, flush-mount sensing configuration. Its miniature cylindrical construction makes it particularly suitable for compact machinery, positioning equipment and automated assemblies where larger proximity sensors cannot easily be installed.
Operating from a 10–30 V DC supply, the sensor incorporates a yellow LED output-state indicator together with short-circuit, reverse-polarity and inductive-load protection. An IP67 protection rating and operating temperature range of -25 °C to +70 °C support reliable operation in demanding industrial environments.
Key Advantages
- Ultra-compact M4 inductive proximity sensor for space-restricted machinery.
- 1 mm nominal sensing distance for precise non-contact metal detection.
- PNP normally open output for integration with industrial control systems.
- Shielded construction enables flush mounting in metal.
- Durable AISI 303 stainless steel housing.
- IP67 protection for dependable industrial operation.
- Pre-wired 2 m PUR cable simplifies machine installation.
Key Features
- M4 cylindrical inductive proximity switch.
- PNP normally open (NO) switching output.
- 1 mm nominal sensing distance.
- 10–30 V DC operating voltage.
- Shielded / flush-mount sensing design.
- Maximum load current up to 100 mA.
- Switching frequency up to 3.5 kHz.
- Yellow LED indication for output status.
- Short-circuit and reverse-polarity protection.
- 2 m PUR fixed cable.
- IP67 degree of protection.
Precise Non-Contact Detection for Industrial Automation
Inductive proximity switches detect metallic targets without requiring physical contact between the sensor and moving machine components. This non-contact operating principle reduces mechanical wear and makes the AB1/AP-3A suitable for repetitive position, presence and end-of-travel detection in automated machinery.
The miniature M4 body is particularly useful where installation space is restricted. Combined with its fast switching capability, stainless steel construction and protected DC output circuitry, the AB1/AP-3A provides a practical sensing solution for high-speed and compact industrial automation equipment.
Typical Applications
- Machine position and presence detection.
- Packaging and production machinery.
- Automated assembly equipment.
- Conveyor and material handling systems.
- Robotics and compact automation systems.
- Metal component detection.
- End-of-travel and position monitoring.
- OEM machinery and industrial control systems.
