Why Choose the IMO AB1/CP-1A M4 Inductive Proximity Switch?

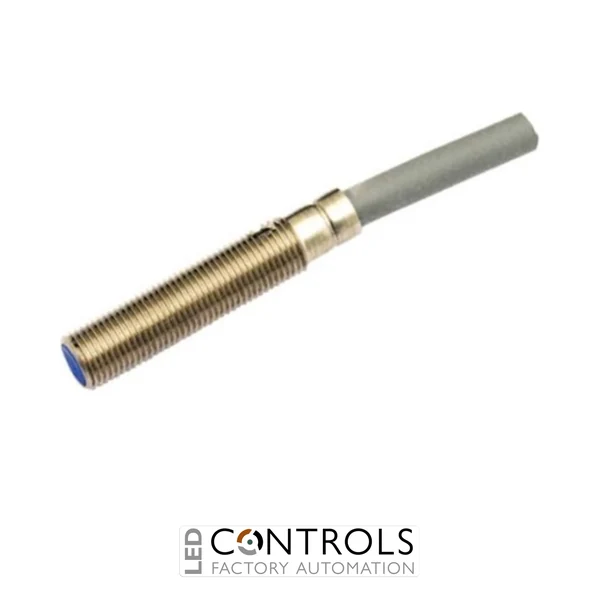

The IMO AB1/CP-1A is a miniature M4 shielded inductive proximity switch designed for precise non-contact detection of metallic objects in compact industrial automation equipment. Its small threaded cylindrical body makes it particularly suitable for machinery where installation space is restricted and dependable position or presence sensing is required.
The AB1/CP-1A provides a nominal sensing distance of 0.6 mm and features a PNP normally closed (NC) output. Operating from a 10 to 30 V DC supply, the sensor supports load currents up to 100 mA and a switching frequency of up to 3 kHz, making it suitable for rapid detection in automated machinery.
Designed for demanding industrial use, the sensor combines an AISI 303 stainless steel M4 × 0.5 housing with IP67 environmental protection and a PBT active sensing face. A yellow LED provides clear output-state indication, while the integral 2 m PUR cable provides a durable pre-wired connection for machine installation.
Key Advantages
- Miniature M4 threaded housing suits space-restricted sensing applications.
- 0.6 mm nominal sensing distance enables precise metallic target detection.
- PNP normally closed output for compatible DC automation systems.
- Shielded design supports flush mounting in metal.
- Fast 3 kHz switching frequency supports rapid machine cycles.
- Non-contact inductive operation eliminates mechanical switch wear.
- IP67 protection and stainless steel construction support industrial environments.
- Integrated 2 m PUR cable provides a robust pre-wired connection.
Key Features
- IMO AB Series miniature inductive proximity sensor.
- M4 × 0.5 threaded cylindrical housing.
- Shielded / flush-mountable sensing design.
- 0.6 mm nominal sensing distance (Sn).
- Operating sensing distance of 0 to 0.48 mm.
- PNP normally closed (NC) output.
- 10 to 30 V DC operating voltage.
- Maximum load current of 100 mA.
- Switching frequency up to 3 kHz.
- Yellow LED output-state indication.
- Short-circuit and reverse-polarity protection.
- Protection against impulsive overvoltage and inductive loads.
- AISI 303 stainless steel housing.
- IP67 degree of protection.
- Integral 2 m PUR cable.
The IMO AB1/CP-1A uses an electromagnetic field at its active sensing face to detect nearby metallic objects without physical contact. When a suitable metal target enters the sensing zone, the sensor changes the state of its PNP normally closed output, providing a dependable signal to a compatible PLC, controller or machine input circuit.
Its compact M4 × 0.5 housing, shielded installation design and 0.6 mm nominal sensing distance make the AB1/CP-1A particularly useful for precise detection of small machine components. With a 3 kHz switching frequency, IP67 protection and comprehensive electrical protection functions, it provides a robust sensing solution for high-cycle industrial automation.
Typical Applications
- Metallic component presence detection.
- Precision position sensing.
- High-speed component detection.
- Compact automated machinery.
- Assembly and handling equipment.
- End-of-travel detection.
- Machine tools and fixtures.
- Robotic automation systems.
- Packaging and production machinery.
- OEM equipment with restricted sensor installation space.
