Why Choose the IMO AK1/AP-2A Inductive Proximity Switch?

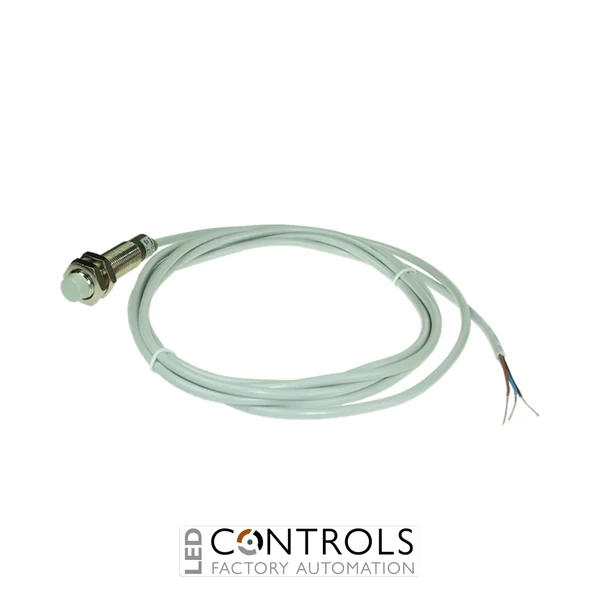

The IMO AK1/AP-2A is an M18 unshielded inductive proximity switch designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Featuring a PNP normally open (NO) output, extended sensing range and an integral 2 m cable, it provides dependable position and presence detection without the mechanical wear associated with contact-based switches.
The AK1/AP-2A uses a threaded M18 cylindrical housing and an unshielded sensing configuration, providing a greater detection range than comparable shielded sensors. This makes it particularly useful where additional sensing clearance is required between the sensor face and the metallic target.
Designed for standard industrial DC control systems, the AK1/AP-2A combines solid-state switching with robust construction and straightforward cable connection. Its unshielded installation format is well suited to conveyors, automated machinery, production equipment and OEM systems requiring reliable metallic target detection.
Key Advantages
- Industrial M18 inductive proximity switch for reliable metallic object detection.
- Unshielded sensing design provides an extended sensing range.
- PNP normally open (NO) output for compatible PLC and machine control inputs.
- Non-contact operation reduces mechanical wear in repetitive sensing applications.
- Threaded cylindrical housing enables straightforward machine mounting and adjustment.
- Integral 2 m cable simplifies connection to industrial control systems.
- Suitable for automation, production machinery and material handling equipment.
Key Features
- IMO AK Series inductive proximity sensor.
- M18 cylindrical threaded body.
- Unshielded / non-flush sensing configuration.
- Extended-range inductive metal detection.
- PNP normally open (NO) switching output.
- Designed for DC industrial control circuits.
- Solid-state, non-contact switching principle.
- Integral 2 m cable.
- Designed for repetitive industrial position and presence sensing.
Extended-Range Non-Contact Detection for Industrial Automation
Inductive proximity switches generate an electromagnetic sensing field to detect conductive metallic targets without physical contact. When a suitable metal object enters the sensing field, the sensor changes its electronic output state, allowing a PLC or other compatible control system to determine the presence or position of the target.
Unlike a shielded sensor that can normally be installed flush within surrounding metal, the AK1/AP-2A uses an unshielded sensing configuration and requires appropriate clearance around the active sensing face. The benefit is an extended sensing field, making this configuration useful where a larger target-to-sensor operating distance is desirable.
Typical Applications
- Machine position and presence detection.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Metal component detection.
- End-position and travel monitoring.
- Counting and repetitive detection applications.
- OEM machinery and industrial automation systems.
