Why Choose the IMO AK1/BP-3H Inductive Proximity Sensor?

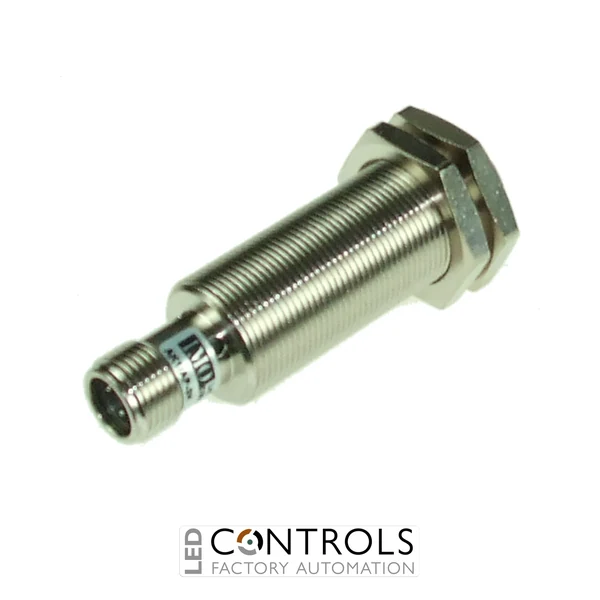

The IMO AK1/BP-3H is a high-performance M18 cylindrical inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine control applications. As part of the IMO AK series inductive sensor range, it provides accurate sensing, robust construction and flexible integration through a convenient M12 connector interface.
This sensor uses shielded inductive detection technology to provide stable object detection in demanding industrial environments. The flush mounting design allows installation close to surrounding metalwork while maintaining dependable switching performance, making it suitable for machinery, production systems and automated equipment.
With an 8 mm nominal sensing distance, PNP complementary NO + NC outputs and a 10–30 V DC supply range, the IMO AK1/BP-3H is ideal for precise position monitoring and reliable machine automation applications.
Key Advantages
- Reliable M18 inductive proximity sensor for industrial automation.
- 8 mm sensing distance for accurate metallic object detection.
- PNP NO + NC complementary outputs provide flexible control integration.
- Shielded flush-mount design for installation in metal environments.
- M12 plug connection simplifies installation and maintenance.
- Robust nickel-plated brass housing for industrial applications.
Key Features
- IMO AK series M18 inductive proximity sensor.
- PNP output logic with NO + NC switching functions.
- 8 mm nominal sensing distance.
- 10–30 V DC operating voltage.
- M12 plug connector connection.
- Shielded flush mounting design.
- Yellow LED output status indication.
- IP67 protection rating for industrial environments.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors such as the IMO AK1/BP-3H detect metallic objects using electromagnetic fields, providing accurate position feedback without physical contact. This makes them ideal for high-cycle industrial applications where reliability, repeatability and long service life are essential.
The AK series is designed for machine builders and automation engineers requiring dependable sensing solutions. The AK1/BP-3H combines a compact M18 format, robust housing and complementary outputs to provide flexible integration into modern control systems.
Typical Applications
- Industrial automation machinery.
- Position detection systems.
- Conveyor and material handling equipment.
- Machine tool monitoring.
- Assembly and production lines.
- OEM automation systems.
