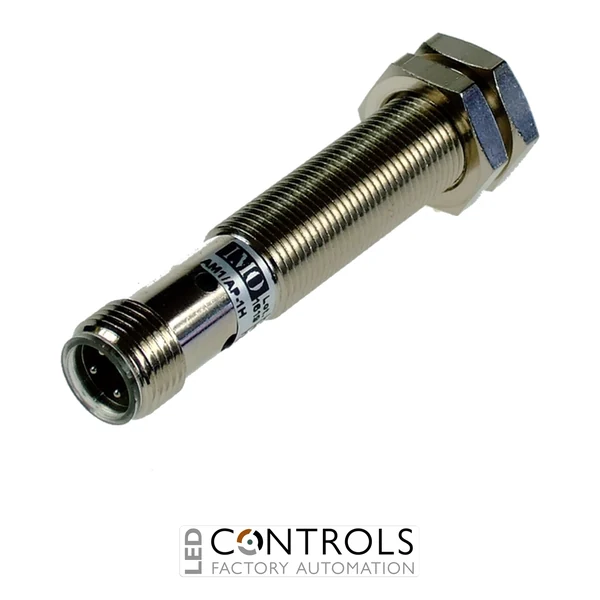

Why Choose the IMO AM1/D2-5H Inductive Proximity Sensor?
The IMO AM1/D2-5H is a high-performance analogue inductive proximity sensor designed for precise position detection and measurement in industrial automation, machinery and control systems. Featuring a compact M12 cylindrical housing, this sensor provides reliable non-contact metal detection with analogue output signals for advanced monitoring and control applications.
The AM1/D2-5H combines a robust industrial design with dual analogue outputs, providing both 0–10 V voltage output and 4–20 mA current output for flexible integration with PLCs, controllers and industrial measurement systems. Its partially shielded construction and compact M12 format make it suitable for demanding automation environments.
With a 6 mm sensing distance, 15–30 V DC operating supply and an M12 4-pin connector, the IMO AM1/D2-5H is ideal for accurate position feedback, displacement measurement and industrial process monitoring applications.
Key Advantages
- Compact M12 analogue inductive proximity sensor for industrial automation.
- 0–10 V and 4–20 mA analogue outputs for flexible control integration.
- 6 mm sensing distance for accurate metal object detection.
- Non-contact sensing improves reliability and reduces mechanical wear.
- IP67 protection rating suitable for industrial environments.
- M12 connector design enables simple installation and replacement.
Key Features
- IMO AM Series inductive sensor.
- M12 cylindrical sensor housing.
- Analogue 0–10 V voltage output.
- Analogue 4–20 mA current output.
- 6 mm nominal sensing distance.
- 4-pin M12 plug connection.
- Partially shielded mounting design.
- Short-circuit and reverse polarity protection.
Reliable Position Measurement for Industrial Automation
Analogue inductive sensors such as the IMO AM1/D2-5H provide continuous position information by converting the distance of a metallic target into an electrical output signal. This allows automation systems to monitor movement, position and process conditions with greater precision than traditional switching sensors.
The AM1/D2-5H is designed for automation engineers, machine builders and control panel specialists requiring accurate analogue feedback in compact industrial installations. Its robust construction, flexible outputs and IP67 protection make it suitable for demanding production environments.
Typical Applications
- Industrial position measurement systems.
- Machine automation and process control.
- PLC analogue input monitoring.
- Metal object detection and displacement measurement.
- Robotics and manufacturing equipment.
- Industrial machinery feedback systems.
