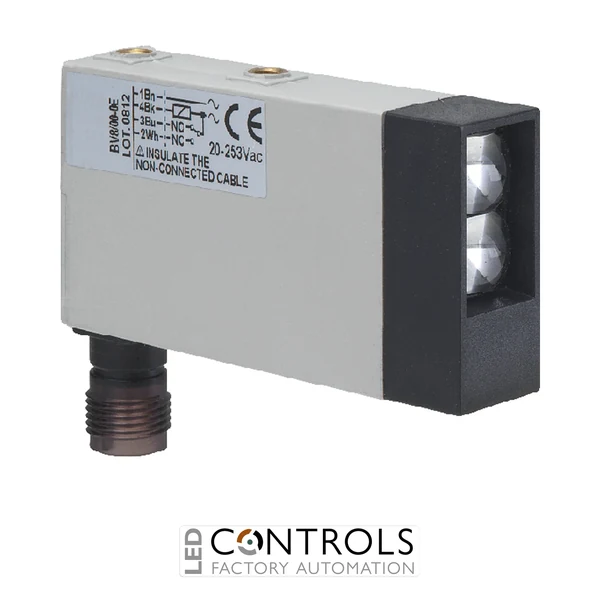

Why Choose the IMO BV2/00-0E Photo-Electric Switch?
The IMO BV2/00-0E is a compact diffuse reflection photo-electric switch designed for reliable object detection in industrial automation and machinery applications. Part of the IMO BS-BV rectangular photoelectric sensor range, this AC multivoltage model combines a 100 mm nominal sensing distance with an infrared optical system and selectable NO/NC TRIAC output.
Using the diffuse reflection principle, the BV2/00-0E detects light reflected directly from the target object, eliminating the need for a separate reflector or receiver. Its 20–253 V AC, 50/60 Hz operating range provides considerable flexibility for industrial control installations, while sensitivity can be adjusted using the integrated one-turn trimmer.
The sensor features a right-angle M12 plug connection, compact ABS housing and IP65 protection for industrial environments. A red LED indicates when the output is energised, while built-in short-circuit protection and robust resin-filled construction help provide dependable operation on production machinery, conveyors and automated handling equipment.
Key Advantages
- Diffuse reflection sensing detects targets without requiring a separate reflector or receiver.
- 100 mm nominal sensing distance suits short-range industrial object detection.
- Wide 20–253 V AC multivoltage supply supports flexible control-system integration.
- Selectable NO/NC TRIAC output allows the switching logic to suit the application.
- Adjustable sensitivity helps optimise detection for different target materials and conditions.
- IP65 ABS housing provides robust protection for industrial machinery installations.
Key Features
- IMO BV / BS-BV rectangular photoelectric sensor series.
- Diffuse reflection sensing principle.
- 100 mm nominal sensing distance.
- 20–253 V AC, 50/60 Hz operating voltage.
- TRIAC output with selectable NO/NC operation.
- 25 Hz switching frequency.
- Infrared 880 nm emission.
- Sensitivity adjustment via one-turn trimmer.
- Red LED indication when the output is energised.
- Right-angle M12 plug connection.
- Compact resin-filled ABS housing.
- IP65 protection rating.
Reliable Object Detection for Industrial Automation
Diffuse reflection photoelectric sensors such as the IMO BV2/00-0E emit infrared light towards the detection area and monitor the light reflected from the target object. When sufficient reflected light reaches the receiver, the sensor changes its output state, providing reliable non-contact detection without requiring a separate reflector on the opposite side of the target.
The BV2/00-0E combines adjustable sensitivity with selectable NO/NC TRIAC switching, allowing its operation to be adapted to different machinery and control requirements. Its multivoltage AC input, M12 connection and compact rectangular construction make it particularly suitable for integration into existing industrial equipment and automated production systems.
Typical Applications
- Object detection on conveyor systems.
- Product presence and position monitoring.
- Packaging and processing machinery.
- Automated assembly equipment.
- Material handling and production systems.
- Industrial machinery requiring short-range non-contact detection.
