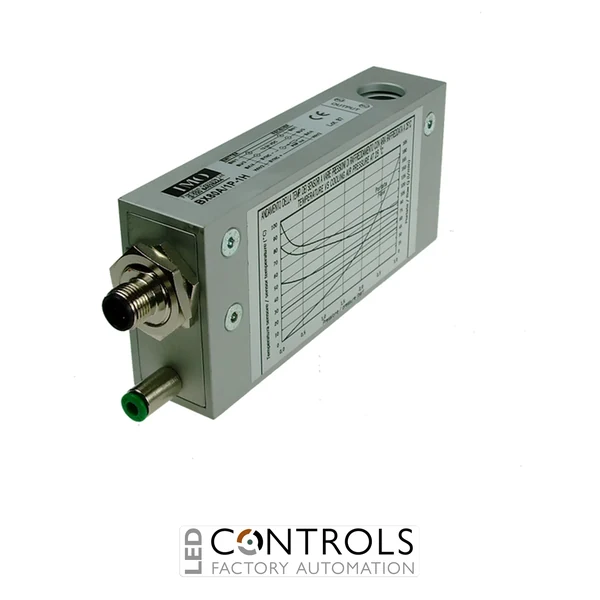

Why Choose the IMO BX80A/1P-1H Photo-Electric Area Sensor Receiver?
The IMO BX80A/1P-1H is a high-resolution through-beam photo-electric area sensor receiver designed for dependable object detection in industrial automation and machinery applications. Part of the IMO BX80 area sensor series, it provides an extended controlled sensing height for monitoring objects across a larger detection area when paired with the corresponding BX80 through-beam emitter.
Unlike a conventional single-point photo-electric sensor, the BX80A/1P-1H uses multiple optical beams distributed across its sensing height. This arrangement enables the receiver to detect objects passing through different positions within the monitored area, making it particularly useful for product presence, counting, positioning and profile-monitoring applications on automated machinery.
The BX80A/1P-1H operates from a 12–24 V DC supply and provides a PNP selectable NO/NC output for straightforward connection to compatible PLCs and industrial control systems. An industrial M12 plug simplifies installation and replacement, while the robust enclosure is designed for demanding factory automation environments.
Key Advantages
- High-resolution through-beam area sensor receiver for industrial object detection.
- Multi-beam sensing provides broader coverage than a conventional single-point photo-electric sensor.
- 12–24 V DC operation suitable for standard industrial control systems.
- PNP selectable NO/NC output provides flexible PLC and controller integration.
- Fast photo-electric detection suitable for automated production equipment.
- M12 plug connection simplifies installation, replacement and maintenance.
- Designed for reliable operation in demanding industrial automation applications.
Key Features
- IMO BX80 high-resolution area sensor series.
- Through-beam photo-electric sensing principle.
- Receiver unit for use with the corresponding BX80 emitter.
- Multiple sensing beams across the controlled detection height.
- PNP output.
- NO / NC selectable output function.
- 12–24 V DC operating supply.
- Industrial M12 plug connection.
- Suitable for presence, counting and object-position monitoring.
- Designed for industrial machinery and factory automation systems.
Reliable Multi-Beam Detection for Industrial Automation
Through-beam area sensors use a separate emitter and receiver positioned opposite one another. Multiple optical beams form a monitored sensing field between the two devices, and an object entering this field interrupts one or more beams so that the receiver can signal the associated machine control system.
This multi-beam arrangement makes the BX80A/1P-1H particularly useful where objects may pass through different positions within a defined area. Applications can include detecting products on conveyors, confirming component presence, monitoring material flow and providing object-counting signals to automated machinery.
Typical Applications
- Industrial conveyor object detection.
- Product presence and absence monitoring.
- Component counting and detection.
- Automated positioning systems.
- Packaging and processing machinery.
- Material handling and transfer equipment.
- Production and assembly machinery.
- OEM industrial automation systems.
