Why Choose the IMO C30M/BP-1E Capacitive Proximity Sensor?

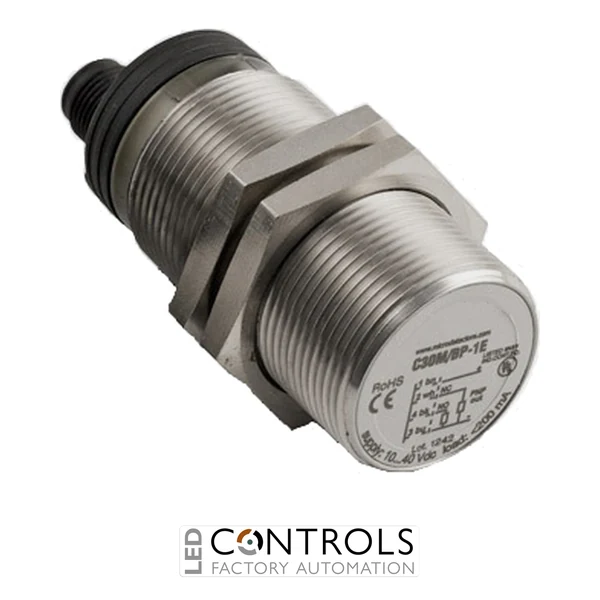

The IMO C30M/BP-1E is a robust M30 capacitive proximity sensor designed for reliable non-contact detection in industrial machinery and automation systems. Featuring a shielded cylindrical design and an AISI 304 stainless steel housing, it can detect metallic and non-metallic materials where conventional inductive sensing may not be suitable.
This sensor operates from a 10–40 V DC supply and provides complementary PNP normally open and normally closed (NO+NC) outputs. Adjustable sensitivity enables the detection point to be optimised for different target materials and installation conditions, while a yellow LED provides convenient visual indication when an object is detected.
With an adjustable nominal sensing distance of 2–16 mm, a 30 Hz switching frequency and an industrial M12 plug connection, the C30M/BP-1E is well suited to object detection, level sensing and automated material-handling applications. Its stainless steel construction and IP67 protection rating provide dependable operation in demanding industrial environments.
Key Advantages
- Industrial M30 capacitive proximity sensor for non-contact detection.
- Adjustable 2–16 mm nominal sensing distance provides flexible application setup.
- 10–40 V DC operating voltage suits common industrial control systems.
- Complementary PNP NO+NC outputs provide flexible PLC and control-system integration.
- Durable AISI 304 stainless steel housing for industrial machinery.
- Shielded mounting enables flush installation.
- Standard M12 plug simplifies installation, servicing and sensor replacement.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- IMO C30M Series capacitive proximity sensor.
- M30 cylindrical stainless steel housing.
- Shielded sensing configuration.
- 2–16 mm adjustable nominal sensing distance.
- PNP NO+NC complementary switching outputs.
- 30 Hz switching frequency.
- 10–40 V DC operating supply.
- Maximum load current of 200 mA.
- Yellow LED for object-detected indication.
- Adjustable sensitivity for application-specific detection.
- Short-circuit, reverse-polarity and impulsive overvoltage protection.
- M12 plug electrical connection.
Reliable Non-Contact Detection for Industrial Automation
Capacitive proximity sensors detect changes in capacitance when a target enters the sensor's electric field. This principle enables the detection of both metallic and non-metallic materials, making capacitive sensors useful for monitoring products, liquids, powders and other materials in automated industrial processes.
The IMO C30M/BP-1E combines adjustable sensitivity with complementary PNP outputs and a rugged stainless steel M30 housing. Its M12 connection, IP67 protection and integrated electrical protection functions support reliable installation in production machinery, conveying equipment and industrial process-control systems.
Typical Applications
- Industrial object and presence detection.
- Liquid and bulk-material level sensing.
- Packaging and production machinery.
- Conveyor and material handling systems.
- Plastic, glass and non-metallic object detection.
- Automated manufacturing equipment.
- Machine positioning and process monitoring.
- Industrial automation and PLC control systems.
