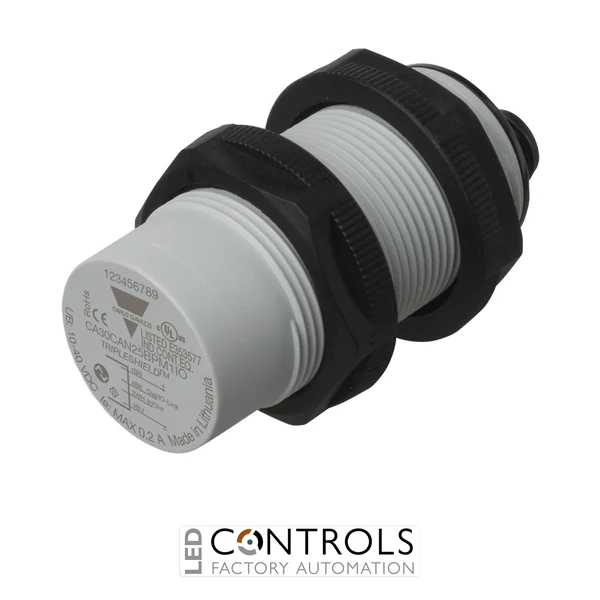

Carlo Gavazzi CA30CAN25BPM1IO M30 non-flush capacitive proximity sensor with a 25 mm rated operating distance, adjustable 4–30 mm sensing range, configurable NPN/PNP/Push-Pull output, IO-Link, M12 connector and IP67, IP68 and IP69K protection.
£100.02
The Carlo Gavazzi CA30CAN25BPM1IO is an advanced M30 non-flush capacitive proximity sensor with IO-Link designed for reliable non-contact detection in industrial automation and process applications. Part of the Carlo Gavazzi CA30CA 4th Generation TRIPLESHIELD™ series, it combines a 25 mm rated operating distance, adjustable sensitivity and intelligent communication in a robust cylindrical PBT housing.
The sensing range can be adjusted from approximately 4–30 mm, allowing the detection point to be configured for different target materials and installation conditions. Capacitive sensing technology enables the CA30CAN25BPM1IO to detect both conductive and non-conductive materials, including liquids, plastics, glass, powders and granular products, making it suitable for presence detection, level monitoring and material sensing.
Operating from a 10–40 V DC supply, the CA30CAN25BPM1IO supports configurable NPN, PNP and Push-Pull switching together with IO-Link communication. Its 4-pole M12 connector, M30 threaded construction, improved EMC performance, ECOLAB compatibility and IP67, IP68 and IP69K protection provide a versatile sensing solution for demanding industrial environments.
Capacitive proximity sensors detect changes in capacitance when a target enters the sensor's electrical field, allowing them to sense both conductive and non-conductive materials. With its 25 mm rated operating distance and adjustable sensing range of approximately 4–30 mm, the CA30CAN25BPM1IO provides extended detection capability for applications involving liquids, plastics, glass, powders, granulates and other industrial materials.
IO-Link adds intelligent configuration and diagnostic capabilities to conventional proximity sensing. Output behaviour, sensing parameters and other functions can be configured through a compatible IO-Link master, while process and diagnostic information can be communicated to the automation system. Combined with its rugged M30 construction and high ingress protection, this makes the CA30CAN25BPM1IO well suited to modern smart machinery and process automation.
| Manufacturer | Carlo Gavazzi |
|---|---|
| Series | CA30CA / 4th Generation TRIPLESHIELD™ |
| Model | CA30CAN25BPM1IO |
| Product type | Capacitive proximity sensor |
| Sensor principle | Capacitive |
| Rated operating distance | 25 mm |
| Adjustable sensing range | 4–30 mm |
| Installation type | Non-flush / unshielded |
| Housing diameter | M30 |
| Housing type | Cylindrical threaded barrel |
| Housing material | PBT plastic |
| Output options | NPN / PNP / Push-Pull configurable |
| Output function | NO / NC configurable |
| Maximum output current | 200 mA |
| Supply voltage | 10–40 V DC |
| Rated power supply | 12–36 V DC |
| Maximum switching frequency | 50 Hz |
| Communication | IO-Link |
| IO-Link version | 1.1 |
| Connection | M12 plug |
| Connector | 4-pole |
| Protection rating | IP67 / IP68 / IP69K |
| Operating temperature | -30 to +85 °C |
| Indication | LED |
| EMC | Improved industrial EMC performance |
| ECOLAB | Yes |
| Barcode / EAN | 5709870394053 |
The CA30CAN25BPM1IO is an M30 capacitive proximity sensor used for non-contact detection of conductive and non-conductive materials, including liquids, plastics, glass, powders and granular products in industrial automation and process applications.
The sensor has a rated operating distance of 25 mm and an adjustable sensing range of approximately 4–30 mm, allowing the detection point to be configured for different targets and applications.
Yes. The CA30CAN25BPM1IO supports IO-Link communication, enabling electronic parameter configuration, process-data communication and diagnostic information through a compatible IO-Link master.
No. The CA30CAN25BPM1IO is designed for non-flush / unshielded installation. Appropriate clearance around the sensing head should therefore be maintained when installing the sensor.
The CA30CAN25BPM1IO uses a 4-pole M12 plug connector and provides IP67, IP68 and IP69K protection, making it suitable for demanding industrial environments when correctly installed.
Carlo Gavazzi 4th Generation TRIPLESHIELD™ capacitive sensors combine extended material detection, IO-Link intelligence, configurable switching and robust environmental protection to provide dependable sensing for modern industrial and process automation systems.
