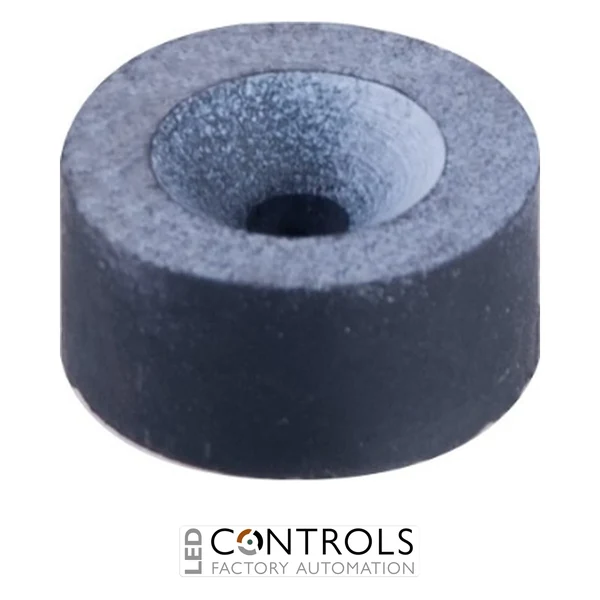

Why Choose the Carlo Gavazzi CL20S1 Cylindrical Magnetic Actuator?
The Carlo Gavazzi CL20S1, also referenced as CL20/S1, is a compact cylindrical magnetic actuator designed for operating compatible Carlo Gavazzi magnetic proximity sensors. Part of the CL series, it uses a permanent ferrite magnet to provide reliable non-contact actuation for position detection and industrial automation applications.
The CL20S1 features a smooth, unthreaded cylindrical construction with a diameter of approximately 25.1 mm and a height of 9.3 mm. Its compact disc-shaped format allows the magnet to be installed on moving machine components, doors, panels and other targets where it can actuate a suitably positioned magnetic proximity sensor.
As a passive permanent magnetic actuator, the CL20S1 requires no electrical supply, wiring or configuration. Its ferrite magnetic construction is intended specifically for magnetic sensing applications, while Carlo Gavazzi specifies that a minimum separation between adjacent CL20S1 magnetic units on the same axis is not mandatory.
Key Advantages
- Compact cylindrical magnetic actuator for non-contact sensing applications.
- Approximately 25.1 mm diameter and 9.3 mm height.
- Permanent ferrite magnetic material provides passive sensor actuation.
- Designed for compatible Carlo Gavazzi magnetic proximity sensors.
- Smooth, unthreaded cylindrical construction supports straightforward installation.
- Requires no external electrical supply or wiring.
- No mandatory minimum separation is specified between adjacent CL20S1 magnets on the same axis.
Key Features
- Carlo Gavazzi CL series magnetic unit.
- Model CL20S1, also referenced as CL20/S1.
- Product type: cylindrical magnetic actuator.
- Ferrite permanent magnet.
- Cylindrical smooth-barrel construction.
- Diameter approximately 25.1 mm.
- Height approximately 9.3 mm.
- Passive operation with no electrical connection required.
- Suitable for magnetic proximity sensor actuation.
- Designed for industrial position and movement detection applications.
- EAN: 8032529965616.
Reliable Magnetic Actuation for Non-Contact Position Detection
Magnetic actuators provide a simple way to operate magnetic proximity sensors without requiring mechanical contact between the target and sensing device. The Carlo Gavazzi CL20S1 generates a permanent magnetic field that can be detected by a compatible sensor when the actuator moves within its specified operating distance.
With no power supply or electrical wiring required, the CL20S1 can be mounted directly to the component whose position is being monitored. Its compact cylindrical format makes it suitable for doors, panels, machine mechanisms and moving equipment where reliable non-contact position detection is required.
Typical Applications
- Magnetic proximity sensor actuation.
- Industrial position detection.
- Door and panel monitoring.
- Machine component position sensing.
- Industrial automation equipment.
- Non-contact switching systems.
- Movement and end-position detection.
