Why Choose the Carlo Gavazzi CLP2EA1CM24 Conductive Level Controller?

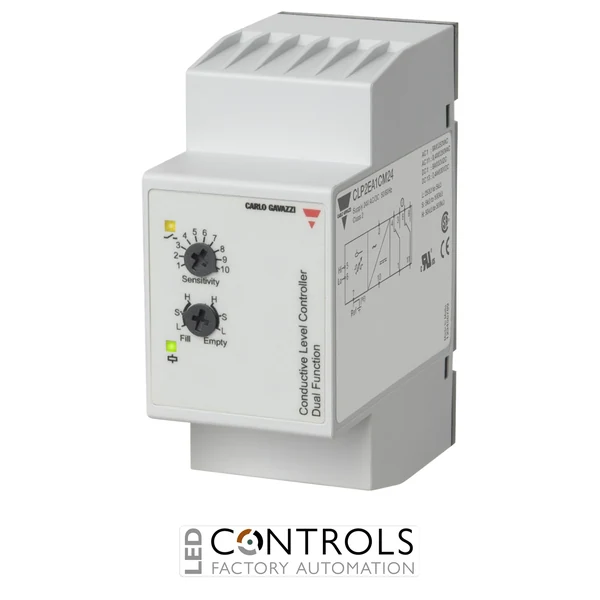

The Carlo Gavazzi CLP2EA1CM24 is a reliable conductive 2-point liquid level controller designed for automatic monitoring and control of conductive liquids in industrial tanks, vessels and process systems. As part of the Carlo Gavazzi CL series, it provides dependable filling and emptying control using conductive level probes.
The CLP2EA1CM24 incorporates two probe inputs and two DPDT relay outputs, allowing high- and low-level conditions to be used for controlling pumps, valves, alarms or other external equipment. Its adjustable sensitivity makes the controller suitable for liquids with a wide range of conductivity characteristics.
With a 24 V AC/DC supply, adjustable sensitivity from 250 Ω to 500 kΩ and a compact plug-in mounting format, the CLP2EA1CM24 is well suited to water management, process control, pumping installations and industrial liquid-level automation.
Key Advantages
- Reliable 2-point conductive liquid level monitoring.
- Supports both filling and emptying control functions.
- Two DPDT relay outputs provide flexible switching options.
- Wide adjustable sensitivity range for different conductive liquids.
- 24 V AC/DC supply suitable for industrial control systems.
- Compact plug-in design simplifies installation and replacement.
Key Features
- Carlo Gavazzi CL series conductive level controller.
- 2-point level control with two input probes.
- 2 × DPDT relay outputs.
- 250 Ω to 500 kΩ adjustable sensitivity.
- 24 V AC/DC nominal supply voltage.
- Filling and emptying operating functions.
- 1 s on-delay and 1 s off-delay.
- Plug-in electrical connection.
- Compact 35.5 mm wide housing.
- IP20 enclosure protection.
Reliable Conductive Level Control for Industrial Systems
Conductive level controllers detect the presence of electrically conductive liquids through probes installed at defined levels within a tank or vessel. The Carlo Gavazzi CLP2EA1CM24 uses this principle to monitor high and low liquid levels and operate its relay outputs according to the selected filling or emptying function.
Its broad adjustable sensitivity range allows the controller to accommodate liquids with different conductivity levels, while the dual relay configuration provides flexibility when integrating pumps, solenoid valves, alarms and control equipment into automated liquid-management systems.
Typical Applications
- Industrial tank filling and emptying systems.
- Water level monitoring and pump control.
- Reservoir and storage-vessel level control.
- Process liquid management systems.
- Pump protection and automatic switching systems.
- Industrial water treatment equipment.
