Why Choose the Carlo Gavazzi CLP2FA1B115 Conductive Level Controller?

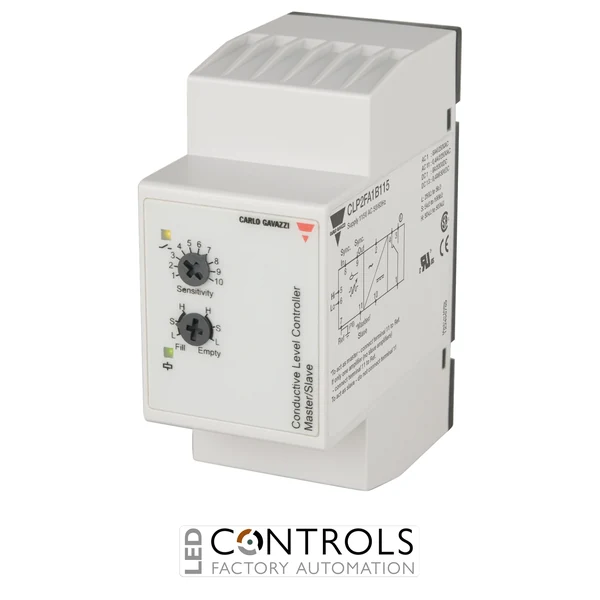

The Carlo Gavazzi CLP2FA1B115 is a compact and reliable 2-point conductive liquid level controller designed for monitoring and controlling conductive liquids in tanks, reservoirs and industrial process systems. Part of the Carlo Gavazzi CL series, this controller supports filling and emptying applications and incorporates cascade coupling for installations requiring additional level-control stages.
The CLP2FA1B115 monitors two levels plus a reference electrode and provides a single SPDT relay output rated at 8 A / 250 V AC. Its adjustable operating resistance range of 250 Ω to 500 kΩ enables reliable detection across conductive liquids with widely differing conductivity characteristics.
Designed for an 115 V AC supply, the CLP2FA1B115 uses a convenient 11-pin circular plug-in connection for straightforward installation and replacement. Low-voltage AC electrode operation, LED status indication and the ability to connect controllers in series make it particularly suitable for automated tank filling, emptying and multi-level liquid management systems.
Key Advantages
- Reliable 2-point conductive liquid level control for industrial applications.
- Designed for both filling and emptying control.
- Cascade coupling enables additional controllers to be connected for multi-level applications.
- Wide 250 Ω to 500 kΩ sensitivity range accommodates liquids with different conductivity levels.
- 8 A / 250 V AC SPDT relay output provides versatile switching capability.
- Convenient 11-pin plug-in mounting simplifies installation and servicing.
Key Features
- Carlo Gavazzi CL series conductive level controller.
- 2-point level control plus reference electrode.
- Integrated cascade coupling for serial connection.
- 1 × SPDT relay output.
- 8 A / 250 V AC relay contact rating.
- 115 V AC rated supply voltage.
- 250 Ω to 500 kΩ adjustable operating resistance.
- Low-voltage AC sensing electrodes.
- LED indication for power and relay output status.
- 11-pin circular plug-in connection.
- Fast response with a time delay of less than 300 ms.
Reliable Conductive Level Control for Industrial Systems
Conductive level controllers detect liquid by measuring electrical conductivity between electrodes installed in a tank or vessel. The Carlo Gavazzi CLP2FA1B115 uses two sensing levels and a reference electrode to provide dependable high- and low-level control, allowing its relay output to operate pumps, valves, alarms and associated automation equipment.
The cascade-coupling capability is particularly useful where more than two levels need to be monitored. Additional compatible controllers can be connected to expand the level-control system, while the broad sensitivity adjustment enables the controller to accommodate conductive liquids ranging from relatively high to low conductivity.
Typical Applications
- Automatic tank filling and emptying systems.
- Industrial water level monitoring.
- Pump and valve control systems.
- Reservoir and storage-vessel level management.
- Water treatment and processing equipment.
- Multi-level systems using cascade-connected controllers.
