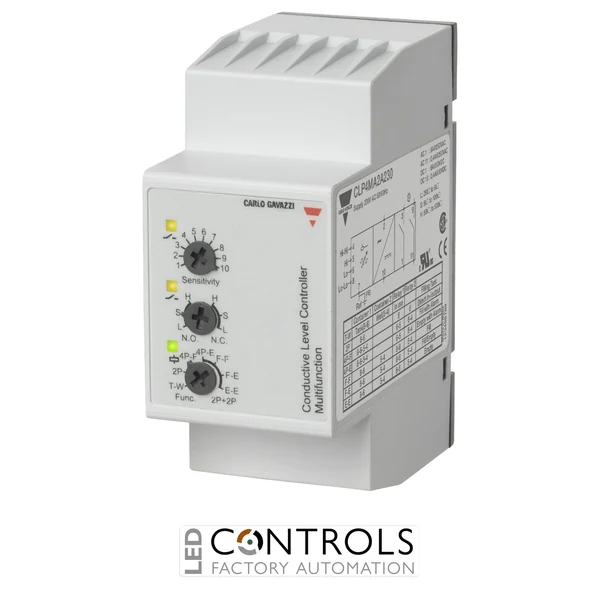

Why Choose the Carlo Gavazzi CLP4MA2A230 Conductive Level Controller?
The Carlo Gavazzi CLP4MA2A230 is a reliable conductive liquid level controller designed for automatic monitoring and control of conductive liquids in tanks, reservoirs and industrial process systems. Part of the Carlo Gavazzi CL series of level controllers, it provides flexible 2 to 4-point level control with filling and emptying functions using conductive electrodes and dual SPST relay outputs.
Designed for 11-pin plug-in mounting, the CLP4MA2A230 provides a compact and dependable solution for liquid level automation applications. Its adjustable sensitivity range from 250 Ω to 500 kΩ allows operation with a wide variety of conductive liquids including water, wastewater and industrial fluids.
With a 230 V AC supply, 2 x SPST relay outputs and support for up to 4 electrode inputs, the CLP4MA2A230 is ideal for automated filling, emptying, alarm and pump control applications requiring reliable liquid level detection.
Key Advantages
- Reliable conductive level controller for industrial automation.
- 2 to 4-point level control supports flexible filling and emptying functions.
- 2 x SPST relay outputs provide dependable switching control.
- Adjustable sensitivity from 250 Ω to 500 kΩ supports different conductive liquids.
- 230 V AC supply for industrial control installations.
- 11-pin plug-in design enables simple replacement and installation.
Key Features
- Carlo Gavazzi CL series conductive level controller.
- 2 to 4-point liquid level monitoring.
- 230 V AC operating supply.
- 2 x SPST relay outputs.
- 4 electrode input connections.
- Adjustable sensitivity range of 250 Ω to 500 kΩ.
- Low-voltage AC electrode supply for conductive sensing.
- LED indication for power and output status.
- 11-pin circular plug mounting configuration.
Reliable Liquid Level Control for Industrial Systems
Conductive level controllers provide automatic liquid management by detecting conductivity between submerged electrodes. The Carlo Gavazzi CLP4MA2A230 uses this proven sensing method to control pumps, valves and filling systems while reducing the need for manual level monitoring.
The CL series is designed for industrial automation applications where dependable switching, adjustable sensitivity and straightforward plug-in installation are required. Its multifunction operation allows configuration for filling, emptying and alarm monitoring applications.
Typical Applications
- Water tank filling and emptying systems.
- Pump control applications.
- Industrial liquid level monitoring.
- Process automation systems.
- Reservoir and storage tank control.
- Water treatment and handling equipment.
- Industrial fluid management systems.
