Why Choose the Carlo Gavazzi EC3016TBAPL-6 Capacitive Proximity Sensor?

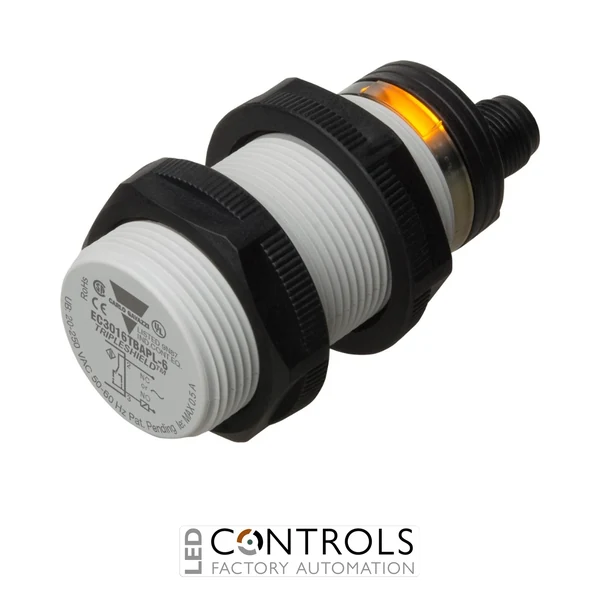

The Carlo Gavazzi EC3016TBAPL-6 is an industrial M30 capacitive proximity sensor designed for reliable non-contact detection of metallic and non-metallic materials. Part of Carlo Gavazzi's TRIPLESHIELD™ capacitive sensor range, it combines an adjustable sensing distance with a rugged thermoplastic polyester housing for applications including level detection, packaging machinery and general industrial automation.
The EC3016TBAPL-6 provides an adjustable sensing range of 2–16 mm and uses a two-wire SCR output with configurable normally open or normally closed switching. Its flush-mountable design allows the sensing face to be embedded within suitable mounting structures, while a maximum switching frequency of 10 Hz supports dependable detection in industrial processes.
Operating from a wide 20–250 V AC supply, the sensor can switch loads up to 500 mA. The -6 variant incorporates an M12 connector rather than a permanently attached cable, simplifying sensor replacement and machine wiring. IP67 protection, transient protection and a yellow LED status indicator further enhance suitability for demanding industrial environments.
Key Advantages
- Industrial capacitive proximity sensor capable of detecting metallic and non-metallic materials.
- Adjustable 2–16 mm sensing range enables sensitivity to be optimised for different targets.
- SCR output with configurable NO or NC switching operation.
- Wide 20–250 V AC operating range supports direct integration into AC control systems.
- M12 plug connection enables convenient installation, replacement and maintenance.
- Flush-mountable M30 housing supports compact machine integration.
- Carlo Gavazzi TRIPLESHIELD™ technology provides high noise immunity for industrial applications.
- IP67 protection supports operation in dusty and wet environments.
Key Features
- Carlo Gavazzi M30 AC TRIPLESHIELD™ series.
- Capacitive sensing principle.
- 2–16 mm adjustable sensing distance.
- M30 × 1.5 threaded cylindrical housing.
- Flush-mountable / shielded construction.
- Two-wire SCR output.
- Configurable normally open or normally closed switching.
- 20–250 V AC rated supply.
- Output current up to 500 mA.
- Maximum switching frequency of 10 Hz.
- M12 connector for field connection.
- Yellow LED switching indication.
- IP67 ingress protection.
Reliable Capacitive Detection for AC Control Systems
Capacitive proximity sensors such as the Carlo Gavazzi EC3016TBAPL-6 detect changes in capacitance when a target enters the sensor's electric field. This principle allows the sensor to detect a much broader range of materials than conventional inductive proximity sensors, including metals, plastics, glass, liquids, powders and granular products.
The adjustable 2–16 mm sensing range allows sensitivity to be matched to the target material and installation conditions. Combined with Carlo Gavazzi TRIPLESHIELD™ technology, a configurable SCR output and a wide AC supply range, the EC3016TBAPL-6 provides a versatile sensing solution for level monitoring and industrial automation systems where dependable detection and convenient M12 connectivity are required.
Typical Applications
- Liquid and bulk-material level detection.
- Plastic and non-metallic object detection.
- Packaging and filling machinery.
- Food and beverage processing equipment.
- Conveyor and material handling systems.
- Industrial machine automation.
- Storage hopper and container monitoring.
- Production and process control systems.
