Why Choose the Carlo Gavazzi EC3016TBAPL Capacitive Proximity Sensor?

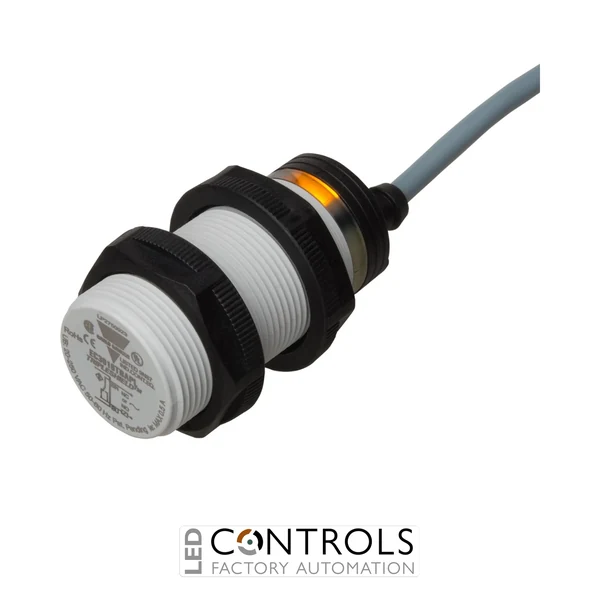

The Carlo Gavazzi EC3016TBAPL is a robust M30 capacitive proximity sensor designed for reliable non-contact detection in industrial automation, level sensing and materials-handling applications. Part of the Carlo Gavazzi EC TRIPLESHIELD™ family, it combines adjustable capacitive sensing with a two-wire AC SCR output for dependable operation in demanding machinery and process-control environments.
The EC3016TBAPL is flush mountable and provides an adjustable sensing distance from 2–16 mm. Capacitive technology enables detection of both conductive and non-conductive materials, making this sensor particularly useful for applications involving plastics, powders, granulates, liquids and other materials that cannot always be detected using conventional inductive proximity sensors.
Operating from a 20–250 V AC supply, the sensor features a configurable SCR NO/NC output, a durable thermoplastic polyester housing and a PVC cable connection. Its IP67 protection rating, TRIPLESHIELD™ design and industrial M30 threaded format make the EC3016TBAPL a versatile solution for factory automation and process monitoring.
Key Advantages
- Industrial capacitive proximity sensing for contactless material detection.
- Adjustable 2–16 mm sensing distance allows application-specific sensitivity setting.
- 20–250 V AC supply range supports direct integration into AC control systems.
- Configurable SCR NO/NC switching output provides installation flexibility.
- Flush-mountable M30 housing supports compact machine installation.
- TRIPLESHIELD™ technology provides high immunity to industrial electrical noise.
- IP67 protection supports operation in demanding industrial environments.
- Suitable for detecting a broad range of conductive and non-conductive materials.
Key Features
- Carlo Gavazzi EC capacitive proximity sensor.
- TRIPLESHIELD™ sensing technology.
- M30 × 1.5 threaded cylindrical housing.
- 2–16 mm adjustable sensing distance.
- Flush-mountable sensor design.
- Two-wire SCR output.
- Configurable normally open / normally closed (NO/NC) operation.
- 20–250 V AC rated power supply.
- Maximum output current of 500 mA.
- Maximum operating frequency of 10 Hz.
- PVC cable connection.
- Yellow LED output indication.
- IP67 degree of protection.
Reliable Capacitive Detection for Industrial Automation
Capacitive proximity sensors detect changes in an electrical field when a target approaches the sensing surface. This enables the Carlo Gavazzi EC3016TBAPL to detect many metallic and non-metallic materials without physical contact, making it particularly useful for material presence, level detection and automated process-monitoring applications.
The adjustable 2–16 mm sensing range allows the sensor to be configured for different target materials and installation requirements. Combined with TRIPLESHIELD™ technology, AC operation, SCR switching and IP67 protection, the EC3016TBAPL provides a dependable sensing solution for industrial machines and process equipment.
Typical Applications
- Industrial level detection and monitoring.
- Plastic processing and manufacturing machinery.
- Powder and granular material detection.
- Liquid presence and level sensing.
- Packaging and filling machinery.
- Conveyor and material handling equipment.
- Production and assembly automation.
- Industrial process-control systems.
