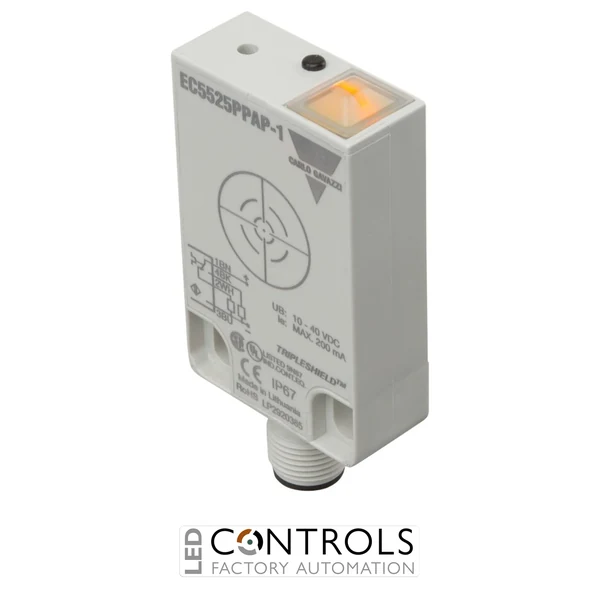

Why Choose the Carlo Gavazzi EC5525PPAP-1 Flat Pack Capacitive Proximity Sensor?
The Carlo Gavazzi EC5525PPAP-1 is a compact and reliable flat pack capacitive proximity sensor designed for non-contact detection of materials in industrial automation and process control applications. As part of the Carlo Gavazzi EC TRIPLESHIELD™ sensor series, it provides dependable sensing performance with improved EMC protection and reliable operation in demanding industrial environments.
This sensor features a space-saving rectangular polycarbonate housing with a PNP transistor output featuring complementary NO and NC switching. The M12 connector version allows quick installation and easy maintenance, while the adjustable sensing range provides flexibility when detecting liquids, powders, plastics and other non-metallic materials.
With a 25 mm adjustable sensing range, 10–40 V DC supply, PNP NO+NC output, M12 plug connection and IP67 protection, the EC5525PPAP-1 is ideal for material handling, packaging machinery and industrial automation applications.
Key Advantages
- Compact flat pack capacitive proximity sensor for industrial automation.
- PNP NO + NC output configuration for flexible control integration.
- 25 mm adjustable sensing distance for versatile material detection.
- TRIPLESHIELD™ technology improves resistance to electromagnetic interference.
- M12 connector connection enables quick installation and replacement.
- Suitable for level sensing and object detection applications.
Key Features
- Carlo Gavazzi EC TRIPLESHIELD™ capacitive sensor series.
- Flat pack rectangular housing design.
- PNP transistor output.
- Complementary NO + NC switching function.
- 25 mm rated sensing range.
- 4–25 mm adjustable sensing distance.
- 10–40 V DC operating voltage.
- 200 mA output current capability.
- M12 connector connection.
- LED status indication.
Reliable Material Detection for Industrial Automation
Capacitive proximity sensors such as the Carlo Gavazzi EC5525PPAP-1 detect changes in capacitance caused by nearby materials, allowing reliable non-contact detection without mechanical wear. This makes them suitable for applications involving liquids, powders, granules and plastic components.
The EC TRIPLESHIELD™ series combines adjustable sensitivity, compact construction and enhanced EMC performance to provide stable operation in industrial environments where reliable detection and long service life are required.
Typical Applications
- Industrial level detection systems.
- Packaging machinery.
- Plastic processing equipment.
- Material handling systems.
- Food and beverage automation.
- Industrial process monitoring.
