Why Choose the Carlo Gavazzi ECH3010PPAT-1 High-Temperature Capacitive Proximity Sensor?

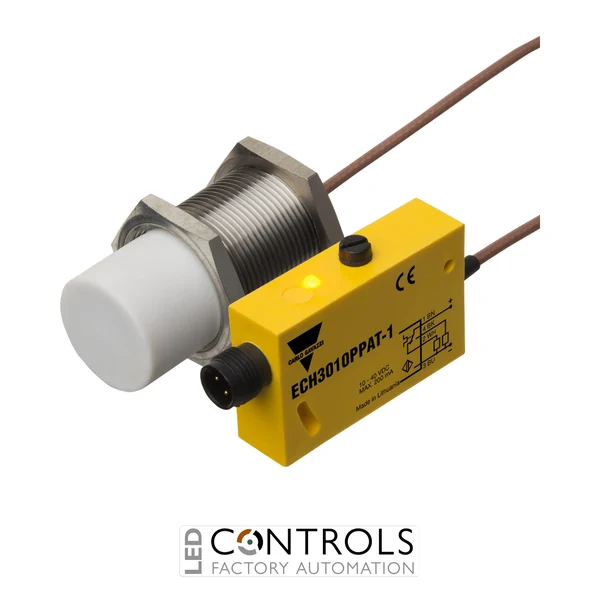

The Carlo Gavazzi ECH3010PPAT-1 is a specialised high-temperature capacitive proximity sensor designed for reliable non-contact material detection in applications where conventional proximity sensors cannot tolerate the process temperature. Part of the Carlo Gavazzi ECH series, it combines a separate amplifier with an M30 sensing head manufactured from stainless steel and PTFE for demanding industrial processes.
The sensor head is designed for extreme-temperature applications from -196 to +180 °C, making the ECH3010PPAT-1 particularly suitable for plastic pellet and resin detection in injection moulding and drying equipment, as well as other hot or cryogenic material-monitoring applications. Its separate sensor and amplifier arrangement allows the sensing head to operate at extreme temperatures while the electronics remain remotely positioned.
The ECH3010PPAT-1 offers an adjustable sensing distance of 4–15 mm, factory set to approximately 10 mm, and operates from a 10–40 V DC supply. It provides complementary PNP normally open and normally closed outputs, an M12 plug connection and IP67 protection for dependable integration into industrial automation systems.
Key Advantages
- Specially designed for extreme-temperature sensing applications from -196 to +180 °C.
- Capacitive technology enables non-contact detection of a wide variety of materials.
- 4–15 mm adjustable sensing distance provides application-specific sensitivity.
- Factory sensing setting of approximately 10 mm.
- PNP NO + NC complementary outputs provide flexible control-system integration.
- Separate amplifier and sensing head protect the electronics from extreme process temperatures.
- Stainless steel and PTFE M30 sensing head designed for demanding temperature environments.
- Integrated reverse-polarity, short-circuit and transient protection.
Key Features
- Carlo Gavazzi ECH high-temperature capacitive sensor series.
- M30 high-temperature sensing head.
- Non-flush mounting configuration.
- 4–15 mm adjustable sensing range.
- Factory setting of approximately 10 mm.
- 10–40 V DC power supply.
- PNP open-collector output.
- Complementary normally open + normally closed switching.
- M12 plug connection.
- Separate amplifier and sensor construction.
- LED indication for output status.
- IP67 degree of protection.
Reliable Detection in Extreme-Temperature Processes
High-temperature capacitive proximity sensors are valuable where materials must be detected without mechanical contact while the sensing point is exposed to temperatures beyond the capabilities of conventional electronic sensors. The ECH3010PPAT-1 addresses this requirement with a separate high-temperature sensing head and amplifier architecture.
Its adjustable capacitive sensing system can be configured for different target materials and process conditions. The exceptionally broad temperature capability of the sensing head makes the ECH3010PPAT-1 particularly useful in plastics processing, drying equipment and applications involving hot, cold, granular or other difficult-to-detect materials.
Typical Applications
- Plastic pellet and resin detection.
- Plastic injection moulding machinery.
- Industrial drying equipment.
- Hot wax detection in manufacturing processes.
- High-temperature material presence detection.
- Cryogenic process sensing applications.
- Industrial process and level monitoring.
- Automated production equipment exposed to extreme process temperatures.
