Why Choose the Carlo Gavazzi EI0802NACS Inductive Proximity Sensor?

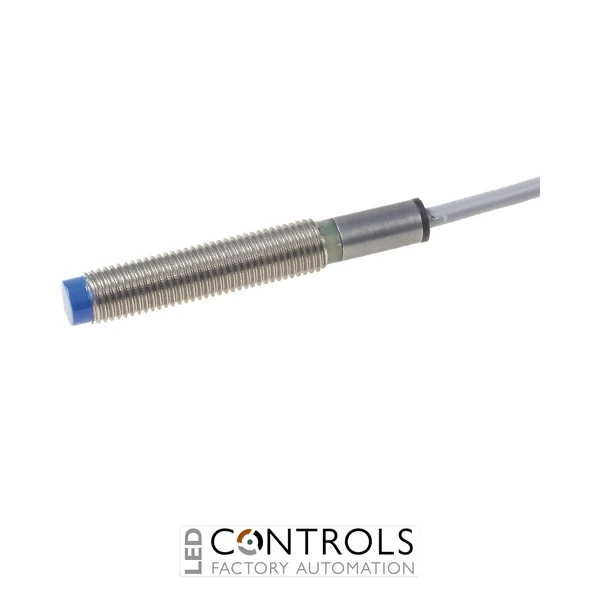

The Carlo Gavazzi EI0802NACS is a compact M8 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and control applications. Part of the Carlo Gavazzi EI08 NAMUR series, it combines a short cylindrical stainless steel housing with a NAMUR output for integration with compatible switching amplifiers and intrinsically safe interface equipment.
The EI0802NACS features a 2 mm rated sensing distance and a non-flush mounting configuration. Its NAMUR normally closed output follows the established NAMUR sensing principle, making the device particularly suitable for process automation, position monitoring and machinery where a low-power two-wire proximity interface is required.
Designed for demanding industrial environments, the sensor incorporates a rugged stainless steel M8 housing, factory-fitted 2 m cable and IP67 protection. A maximum switching frequency of 1.5 kHz enables responsive metal detection, while an operating temperature range of -25 to +70 °C supports dependable use across a broad range of industrial conditions.
Key Advantages
- Compact M8 inductive proximity sensor for non-contact metal detection.
- NAMUR output for connection to compatible industrial interface equipment.
- Normally closed switching function for defined control-system logic.
- 2 mm rated sensing distance in a compact short-body design.
- Durable stainless steel housing for industrial environments.
- Fast 1.5 kHz maximum switching frequency supports responsive detection.
- Factory-fitted 2 m cable simplifies machine wiring.
- IP67 protection provides resistance to dust and temporary water immersion.
Key Features
- Carlo Gavazzi EI08 NAMUR series.
- Inductive sensing principle for metallic targets.
- M8 cylindrical threaded barrel.
- Short-body stainless steel construction.
- 2 mm rated operating distance.
- Non-flush mounting.
- NAMUR output.
- Normally closed (NC) output function.
- Nominal operating voltage of 8.2 V DC.
- Rated operating voltage range of 7–9 V DC.
- Maximum switching frequency of 1.5 kHz.
- 2 m connection cable.
- -25 to +70 °C operating temperature.
- IP67 ingress protection.
Reliable NAMUR Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI0802NACS generate an electromagnetic sensing field and detect changes caused by a metallic target entering that field. Because detection requires no physical contact, the sensor provides a practical solution for repetitive position, presence and movement monitoring where mechanical limit switches would otherwise be subject to wear.
The NAMUR interface is particularly useful in process and industrial automation systems where the proximity sensor is connected to a compatible switching amplifier or control interface. Combined with its compact M8 stainless steel body, 2 mm sensing distance and fast 1.5 kHz switching capability, the EI0802NACS provides dependable metallic target detection where installation space is limited.
Typical Applications
- Industrial metal presence detection.
- Machine position and end-position sensing.
- Process automation systems.
- Valve and actuator position monitoring.
- Rotating machinery monitoring.
- Conveyor and material handling equipment.
- Automated production machinery.
- NAMUR-compatible industrial control systems.
