Why Choose the Carlo Gavazzi EI1202PPCSS-1 Inductive Proximity Sensor?

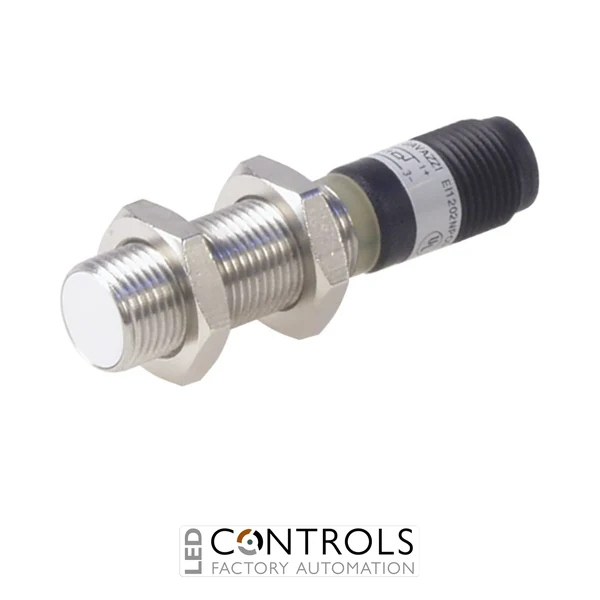

The Carlo Gavazzi EI1202PPCSS-1 is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. Its cylindrical threaded stainless-steel housing combines mechanical durability with a short-body format measuring approximately 30 mm in length.
The EI1202PPCSS-1 provides a rated sensing distance of 2 mm and features a shielded, flush-mountable design, allowing installation into suitable metal mounting structures. Its PNP normally closed (NC) output provides straightforward interfacing with compatible PLC inputs and industrial control equipment.
Operating from a DC control supply, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 800 Hz. The M12 plug connection simplifies installation and replacement, while IP67 protection and a specified operating temperature range of -25 to +70 °C support dependable use in industrial environments.
Key Advantages
- Inductive sensing technology provides reliable non-contact detection of metallic targets.
- Rated sensing distance of 2 mm.
- Shielded, flush-mountable M12 design supports compact machine installation.
- PNP normally closed output for compatible PLC and control-system inputs.
- Durable stainless-steel housing for industrial environments.
- Short 30 mm body is useful where installation depth is restricted.
- Maximum switching frequency of 800 Hz supports responsive object detection.
- M12 plug connection simplifies installation, servicing and sensor replacement.
Key Features
- Carlo Gavazzi EI1202 series.
- Inductive proximity sensing.
- M12 cylindrical threaded barrel.
- Stainless-steel housing.
- Short-body construction.
- Shielded / flush mounting.
- Rated operating distance: 2 mm.
- PNP transistor output.
- Normally closed (NC) switching function.
- Maximum output current: 200 mA.
- Maximum switching frequency: 800 Hz.
- M12 plug-in connection.
- IP67 degree of protection.
- Operating temperature from -25 to +70 °C.
Inductive proximity sensors detect conductive metallic targets by generating an electromagnetic field at the sensing face and monitoring changes when metal enters that field. Because detection takes place without mechanical contact, the EI1202PPCSS-1 is well suited to repetitive presence, position and machine-status sensing where mechanical switches may otherwise be subject to wear.
The EI1202PPCSS-1 combines a 2 mm sensing distance with a shielded M12 stainless-steel body, PNP normally closed output and maximum switching frequency of 800 Hz. Its short-body construction and M12 connector make it particularly convenient for compact machinery where installation space, rapid replacement and dependable metal detection are important.
Typical Applications
- Metallic object presence detection.
- Machine position and end-position sensing.
- Conveyor and material-handling equipment.
- Automated manufacturing machinery.
- Packaging and processing equipment.
- Assembly and production lines.
- Industrial counting and positioning systems.
- Machinery using compatible PNP PLC inputs.
