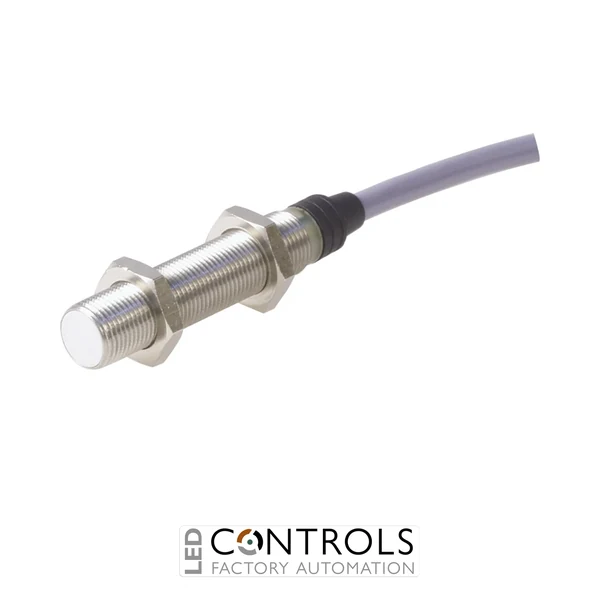

Why Choose the Carlo Gavazzi EI1202PPOSL Inductive Proximity Sensor?
The Carlo Gavazzi EI1202PPOSL is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi EI1202 series, it combines a stainless steel cylindrical threaded housing with a PNP normally open output for dependable integration into PLC-controlled equipment.
The sensor provides a rated operating distance of 2 mm and is designed for flush mounting, allowing it to be installed directly into surrounding metal where compact sensor positioning is required. Inductive sensing technology provides contactless target detection without mechanical wear, making the EI1202PPOSL well suited to repetitive positioning, presence detection and machine monitoring duties.
With a 10–32 V DC rated power supply, maximum output current of 200 mA and maximum switching frequency of 800 Hz, the EI1202PPOSL delivers responsive detection for automated machinery. Its long-body M12 stainless steel construction, 2 m cable and IP67 protection rating provide a durable solution for demanding industrial installations.
Key Advantages
- Reliable non-contact detection of metallic targets in industrial machinery.
- 2 mm rated operating distance for accurate object and position sensing.
- Flush-mount M12 design supports compact installation into machinery.
- PNP normally open output for straightforward PLC and control-system integration.
- Durable stainless steel long-body housing for industrial environments.
- 800 Hz maximum switching frequency supports responsive automated processes.
Key Features
- Carlo Gavazzi EI1202 inductive sensor series.
- M12 cylindrical threaded barrel.
- 2 mm rated operating distance.
- Flush mounting configuration.
- PNP normally open output.
- 10–32 V DC rated power supply.
- 200 mA maximum output current.
- 800 Hz maximum switching frequency.
- 2 m integral cable connection.
- LED indication for output status.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects without requiring physical contact between the target and sensing face. This contactless operating principle reduces mechanical wear and enables reliable repetitive detection in automated machinery, production equipment, conveyors and positioning systems.
The EI1202PPOSL combines a short 2 mm sensing distance with flush mounting and an 800 Hz maximum switching frequency, making it suitable for accurate detection in compact and fast-moving automation applications. Its stainless steel construction and IP67 protection further support dependable use in demanding machine environments.
Typical Applications
- Metal component presence detection.
- Machine position and end-of-travel sensing.
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Counting and positioning of metallic components.
- OEM machinery and PLC-controlled automation systems.
