Why Choose the Carlo Gavazzi EI1202PPOSS-1 Inductive Proximity Sensor?

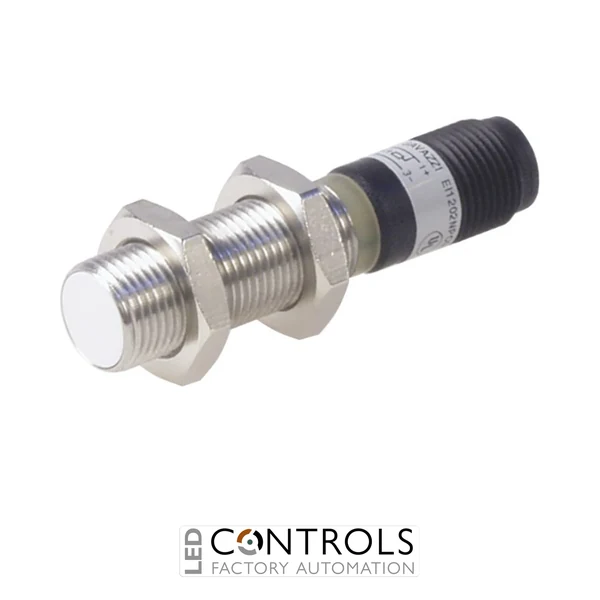

The Carlo Gavazzi EI1202PPOSS-1 is a compact and robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi EI1202 inductive sensor series, it combines a stainless steel cylindrical threaded housing with a PNP normally open output for straightforward integration with PLCs and industrial control equipment.
This sensor provides a rated operating distance of 2 mm and uses a flush-mount, shielded sensing configuration, allowing it to be installed directly into surrounding metal. Its short-body construction is particularly useful where installation space is limited, while inductive sensing eliminates mechanical contact and associated wear during repetitive detection operations.
With a 10–32 V DC rated power supply, maximum output current of 200 mA and maximum switching frequency of 800 Hz, the EI1202PPOSS-1 provides responsive detection for automated equipment. The M12 plug connection, stainless steel short-body housing and IP67 protection rating make it well suited to demanding industrial installations.
Key Advantages
- Reliable non-contact detection of metallic targets in industrial machinery.
- 2 mm rated operating distance for accurate position and presence detection.
- Flush-mount shielded design allows installation directly into surrounding metal.
- PNP normally open output supports straightforward PLC integration.
- Compact 30 mm short-body stainless steel housing for space-restricted installations.
- M12 plug connection simplifies sensor installation, replacement and maintenance.
Key Features
- Carlo Gavazzi EI1202 inductive sensor series.
- M12 cylindrical threaded stainless steel housing.
- 2 mm rated operating distance.
- Flush mounting configuration.
- PNP normally open (NO) output.
- 10–32 V DC rated power supply.
- 200 mA maximum output current.
- 800 Hz maximum switching frequency.
- M12 plug-in connection.
- LED indication for output status.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets by generating an electromagnetic sensing field and monitoring changes caused when metal enters that field. Because detection takes place without physical contact, the EI1202PPOSS-1 provides a durable solution for repetitive presence, position and end-of-travel sensing in automated machinery.
The EI1202PPOSS-1 combines a precise 2 mm sensing distance with flush mounting and an 800 Hz maximum switching frequency, making it suitable for compact and responsive automation applications. Its short stainless steel body, M12 connector and IP67 protection provide practical installation and dependable operation in industrial environments.
Typical Applications
- Metal component presence detection.
- Machine position and end-of-travel sensing.
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Counting and positioning of metallic components.
- OEM machinery and PLC-controlled automation systems.
