Why Choose the Carlo Gavazzi EI1202TBCSL Inductive Proximity Sensor?

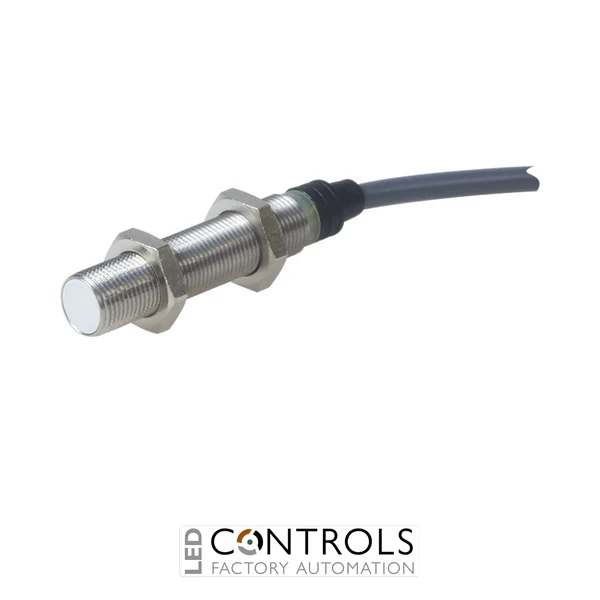

The Carlo Gavazzi EI1202TBCSL is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. Part of the Carlo Gavazzi EI series, it features a long-body stainless steel cylindrical housing and two-wire SCR switching for dependable integration into AC control circuits.
Using inductive sensing technology, the EI1202TBCSL detects metallic objects without physical contact, helping reduce mechanical wear in repetitive machine applications. Its flush-mountable construction allows the sensing face to be installed within surrounding metal, making it particularly useful for compact machinery, position monitoring and component detection.
The EI1202TBCSL provides a rated sensing distance of 2 mm, a normally closed SCR output and an operating supply of 20–250 V AC. A 2 m integral cable, maximum output current of 500 mA and IP67 protection make it a practical solution for demanding industrial sensing installations.
Key Advantages
- Reliable non-contact detection of metallic targets.
- Rugged M12 stainless steel long-body housing.
- 2 mm rated operating distance for precise short-range sensing.
- Flush-mountable design supports compact installation within machinery.
- Two-wire SCR normally closed output for AC control applications.
- Wide 20–250 V AC supply range.
- 2 m integral cable provides straightforward fixed wiring.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi EI series inductive proximity sensor.
- M12 cylindrical threaded barrel.
- Stainless steel housing construction.
- Long-body sensor design.
- 2 mm rated sensing distance.
- Flush installation.
- Two-wire SCR output.
- Normally closed (NC) switching function.
- 20–250 V AC supply voltage.
- Maximum output current of 500 mA.
- Maximum switching frequency of 25 Hz.
- Yellow LED output indication.
- IP67 degree of protection.
Reliable Inductive Detection for Industrial Machinery
Inductive proximity sensors detect metallic objects by generating an electromagnetic field at the sensing face and responding when a suitable conductive target enters the detection zone. Because detection takes place without mechanical contact, they provide a durable sensing method for repetitive industrial applications where conventional mechanical switches can be subject to wear.
The Carlo Gavazzi EI1202TBCSL combines this proven sensing principle with a stainless steel M12 housing, flush installation and AC two-wire SCR output. Its 2 mm sensing distance is well suited to precise machine-position monitoring, metal component detection and process sequencing in automated industrial equipment.
Typical Applications
- Industrial machine position detection.
- Metal component presence sensing.
- End-position and travel monitoring.
- Conveyor and material handling systems.
- Automated assembly machinery.
- Packaging and production equipment.
- Factory automation and process sequencing.
- OEM machinery using AC control circuits.
