Why Choose the Carlo Gavazzi EI1202TBOSL-6 Inductive Proximity Sensor?

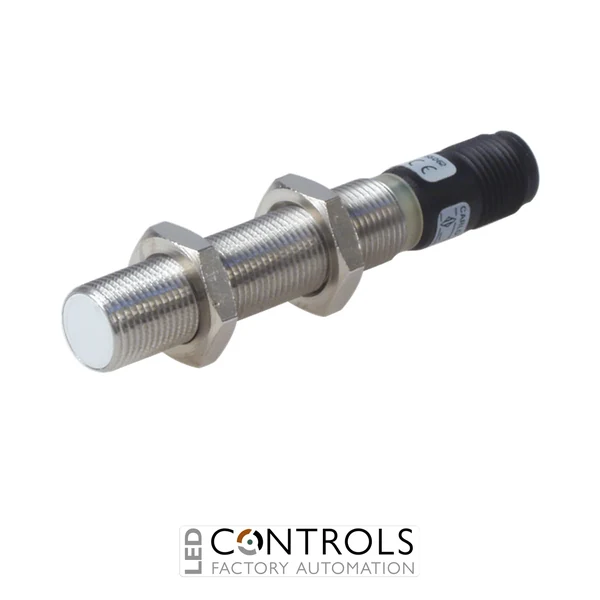

The Carlo Gavazzi EI1202TBOSL-6 is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi EI12 series, this long-body sensor combines a stainless steel threaded housing with a two-wire SCR normally open output for dependable switching in AC control applications.
The EI1202TBOSL-6 provides a nominal sensing distance of 2 mm and is designed for flush mounting, allowing the sensing face to be installed within surrounding metal. Its non-contact operating principle reduces mechanical wear compared with conventional limit switches, making it suitable for repeated position, presence and movement detection in automated equipment.
With a 20–250 V AC supply, maximum output current of 500 mA and switching frequency of up to 25 Hz, the EI1202TBOSL-6 is suitable for a wide range of industrial sensing duties. An M12 connector provides convenient electrical connection, while the stainless steel housing and IP67 protection rating support reliable operation in demanding industrial environments.
Key Advantages
- Reliable M12 inductive proximity sensing for metallic targets.
- 2 mm nominal sensing distance for precise short-range detection.
- Two-wire SCR normally open output for AC control applications.
- 20–250 V AC operating range supports common industrial control voltages.
- Durable stainless steel long-body housing for industrial environments.
- M12 connector enables convenient installation, replacement and maintenance.
- Flush-mountable design allows integration into metal machinery and equipment.
- IP67 protection provides resistance to dust and temporary water immersion.
Key Features
- Carlo Gavazzi EI12 series inductive proximity sensor.
- M12 × 1 threaded cylindrical housing.
- 2 mm rated operating distance.
- Two-wire SCR normally open (NO) switching output.
- 20–250 V AC supply voltage.
- 500 mA maximum output current.
- 25 Hz maximum switching frequency.
- M12 connector electrical connection.
- Long-body stainless steel construction.
- Flush mounting for shielded sensing applications.
- Yellow LED output status indication.
- Transient protection for dependable industrial operation.
- IP67 rated enclosure.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI1202TBOSL-6 detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable metal object enters the detection zone, allowing machinery to determine component presence or position without the mechanical wear associated with contact-operated switches.
The EI1202TBOSL-6 is particularly suited to AC industrial control applications requiring a compact two-wire sensor. Its stainless steel M12 housing, flush mounting arrangement, SCR switching output and connector termination make it straightforward to integrate into production machinery, material handling equipment and automated control systems.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- Component counting and positioning applications.
- Industrial AC control and automation systems.
