Why Choose the Carlo Gavazzi EI1204NPCSS-1 Inductive Proximity Sensor?

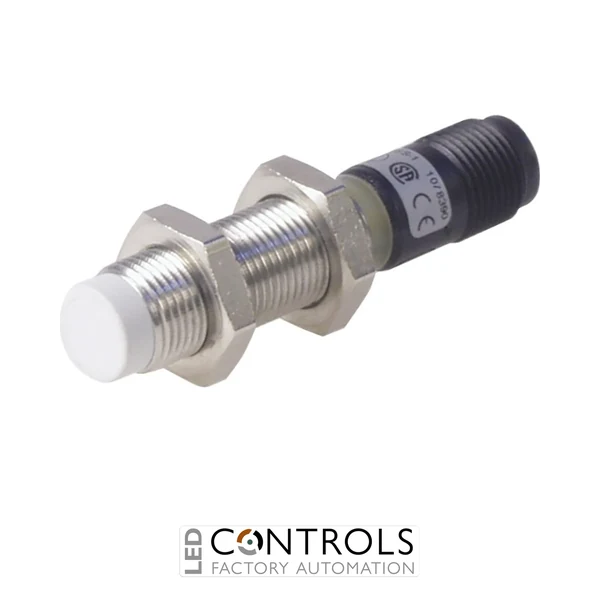

The Carlo Gavazzi EI1204NPCSS-1 is a compact and robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine control applications. As part of the Carlo Gavazzi EI12 sensor range, it combines a stainless-steel threaded housing with a short-body design for installation where space and durability are important.
This sensor provides a nominal sensing distance of 4 mm and features an NPN normally closed (NC) output. Inductive sensing technology enables dependable detection without mechanical contact, helping reduce wear and providing a long service life in repetitive positioning, presence detection and machine automation duties.
With a 10–32 V DC supply, maximum output current of 200 mA, switching frequency up to 500 Hz and IP67 protection, the EI1204NPCSS-1 is well suited to demanding industrial environments. Its M12 plug connection supports convenient installation and sensor replacement.
Key Advantages
- Reliable non-contact detection of metallic targets for industrial automation.
- 4 mm nominal sensing distance for accurate presence and position detection.
- NPN normally closed output for compatible DC control circuits.
- Durable stainless-steel M12 threaded housing for industrial use.
- M12 plug connection simplifies installation, servicing and replacement.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi EI12 inductive sensor range.
- M12 cylindrical threaded sensor body.
- 4 mm nominal sensing distance (Sn).
- NPN normally closed (NC) switching output.
- 10–32 V DC supply voltage.
- 200 mA maximum output current.
- 500 Hz maximum switching frequency.
- Short-body stainless-steel construction.
- M12 plug-in electrical connection.
- IP67 ingress protection.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact between the sensor and moving machinery. This makes them particularly useful for repetitive position sensing, end-of-travel detection, component counting and presence monitoring where mechanical switches could be subject to wear.
The EI1204NPCSS-1 combines a compact M12 format with a stainless-steel housing and plug-in connection, making it suitable for integration into machinery, conveyors and automated production equipment. Its 4 mm sensing distance and fast switching capability provide dependable feedback to PLCs and industrial control systems.
Typical Applications
- Industrial machinery position detection.
- Conveyor and material handling systems.
- Metal component presence detection.
- Automated production and assembly equipment.
- Packaging and processing machinery.
- PLC-based machine control systems.
