Why Choose the Carlo Gavazzi EI1204NPOSS-1 Inductive Proximity Sensor?

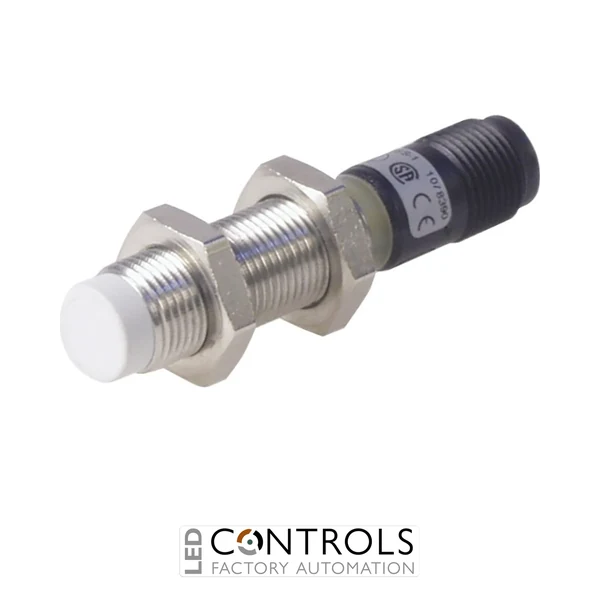

The Carlo Gavazzi EI1204NPOSS-1 is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi EI1204 inductive sensor series, it combines a stainless steel cylindrical threaded housing with an NPN normally open output for integration with PLCs, machine controllers and industrial control equipment.
The sensor provides a rated operating distance of 4 mm and uses a non-flush, unshielded sensing configuration. This extended sensing distance provides additional detection range compared with shielded M12 variants, while contactless inductive operation eliminates the mechanical wear associated with conventional limit switches.
With a 10–32 V DC rated power supply, maximum output current of 200 mA and maximum switching frequency of 500 Hz, the EI1204NPOSS-1 provides responsive detection for automated machinery. Its short-body stainless steel construction, M12 plug connection and IP67 protection rating make it particularly suitable for compact and demanding industrial installations.
Key Advantages
- Reliable non-contact detection of metallic targets in industrial automation.
- 4 mm rated operating distance provides extended sensing capability.
- Non-flush, unshielded sensing configuration for applications requiring greater detection range.
- NPN normally open output for integration with compatible PLC and machine control inputs.
- Compact short-body stainless steel M12 housing for space-restricted installations.
- M12 plug connection simplifies installation, sensor replacement and maintenance.
Key Features
- Carlo Gavazzi EI1204 inductive sensor series.
- M12 cylindrical threaded stainless steel housing.
- 4 mm rated operating distance.
- Non-flush mounting configuration.
- NPN normally open (NO) output.
- 10–32 V DC rated power supply.
- 200 mA maximum output current.
- 500 Hz maximum switching frequency.
- M12 plug-in connection for convenient wiring.
- LED indication for output status.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets by generating an electromagnetic sensing field and monitoring changes as metal enters the detection area. This contactless operating principle enables repetitive presence and position sensing without physical wear, helping improve reliability in automated machinery and production equipment.
The EI1204NPOSS-1 combines a 4 mm sensing distance with a compact non-flush M12 design and a 500 Hz maximum switching frequency. Its stainless steel construction, protected electronics and convenient plug connection provide a dependable solution for machine builders and industrial automation engineers.
Typical Applications
- Metal component presence detection.
- Machine position and end-of-travel sensing.
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Counting and positioning of metallic components.
- OEM machinery and PLC-controlled automation systems.
