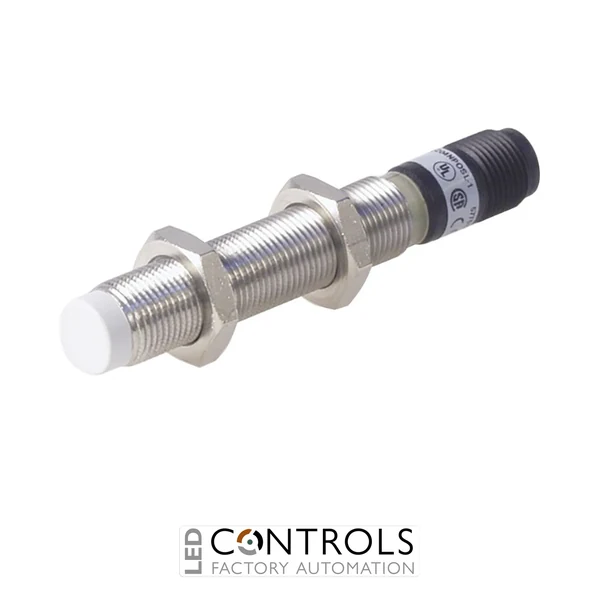

Why Choose the Carlo Gavazzi EI1204PPOSL-1 Inductive Proximity Sensor?
The Carlo Gavazzi EI1204PPOSL-1 is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. Part of the Carlo Gavazzi EI series, this long-body sensor combines a stainless steel cylindrical housing with a PNP normally open output and convenient M12 plug connection.
Using inductive sensing technology, the EI1204PPOSL-1 detects metallic objects without physical contact, helping reduce mechanical wear in repetitive industrial processes. Its 4 mm rated sensing distance provides dependable target detection for machine positioning, component presence monitoring, end-position sensing and automated process sequencing.
The EI1204PPOSL-1 operates from a 10–40 V DC supply and provides a PNP normally open output capable of switching loads up to 200 mA. With a maximum switching frequency of 500 Hz, an M12 plug connection and IP67 protection, it is well suited to demanding industrial machinery and factory automation installations.
Key Advantages
- Reliable non-contact detection of metallic targets.
- Robust M12 stainless steel threaded housing for industrial machinery.
- 4 mm rated sensing distance for dependable proximity detection.
- PNP normally open output for integration with compatible PLC and control inputs.
- Wide 10–40 V DC supply range suits industrial automation systems.
- Maximum 200 mA output current for practical control applications.
- 500 Hz maximum switching frequency supports responsive machine sensing.
- M12 plug connection simplifies installation, servicing and sensor replacement.
- IP67 protection supports reliable operation in demanding industrial environments.
Key Features
- Carlo Gavazzi EI series inductive proximity sensor.
- M12 cylindrical threaded barrel.
- Long-body stainless steel construction.
- 4 mm rated operating distance.
- PNP transistor output.
- Normally open (NO) switching function.
- 10–40 V DC rated power supply.
- Maximum output current of 200 mA.
- Maximum switching frequency of 500 Hz.
- M12 plug-in connection.
- LED output status indication.
- Short-circuit and reverse-polarity protection.
- IP67 degree of protection.
Reliable Inductive Detection for Industrial Machinery
Inductive proximity sensors detect metallic objects by creating an electromagnetic field at the sensing face and responding when a suitable conductive target enters the detection zone. Since sensing takes place without physical contact, this technology provides a durable alternative to mechanical switching devices in high-cycle industrial applications.
The Carlo Gavazzi EI1204PPOSL-1 combines this proven sensing principle with a rugged stainless steel M12 housing, 4 mm sensing distance and fast PNP switching. Its plug-in connection makes installation and replacement convenient, while IP67 protection helps maintain dependable operation in industrial automation environments.
Typical Applications
- Industrial machine position detection.
- Metal component presence sensing.
- End-position and travel monitoring.
- Conveyor and material handling systems.
- Automated assembly machinery.
- Packaging and production equipment.
- Factory automation and process sequencing.
- OEM machinery and industrial control systems.
