Why Choose the Carlo Gavazzi EI1204PPOSL Inductive Proximity Sensor?

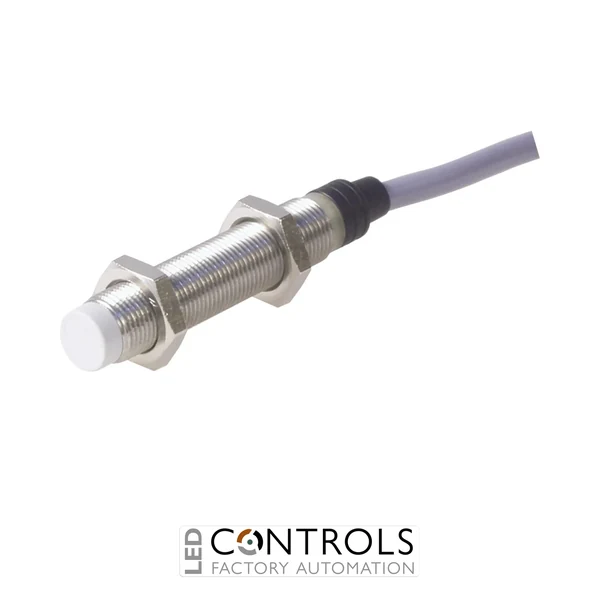

The Carlo Gavazzi EI1204PPOSL is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. Part of the Carlo Gavazzi EI family, it combines a stainless steel cylindrical threaded housing with a PNP normally open output and integral cable connection.
Using inductive sensing technology, the EI1204PPOSL detects metallic objects without requiring physical contact. Its 4 mm rated sensing distance and non-flush mounting configuration make it suitable for machine positioning, component presence detection, travel monitoring and automated process sequencing where dependable metal detection is required.
The EI1204PPOSL operates from a 10–40 V DC supply, supports an output current up to 200 mA and offers a maximum switching frequency of 500 Hz. A 2 m integral cable, long-body stainless steel construction and IP67 protection provide a practical combination for demanding industrial installations.
Key Advantages
- Reliable non-contact detection of metallic targets.
- Rugged M12 stainless steel housing for industrial environments.
- 4 mm rated operating distance for dependable proximity detection.
- Non-flush mounting provides the extended sensing range of this M12 configuration.
- PNP normally open output for integration with compatible PLC and control inputs.
- Wide 10–40 V DC operating range suits industrial automation systems.
- Maximum output current of 200 mA.
- Fast 500 Hz maximum switching frequency for responsive machine sensing.
- 2 m integral cable enables straightforward permanent wiring.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi EI series inductive proximity sensor.
- M12 cylindrical threaded barrel.
- Long-body stainless steel construction.
- 4 mm rated sensing distance.
- Non-flush / unshielded sensing configuration.
- PNP transistor output.
- Normally open (NO) switching function.
- 10–40 V DC rated power supply.
- Maximum output current of 200 mA.
- Maximum switching frequency of 500 Hz.
- 2 m integral cable.
- LED indication for output status.
- Short-circuit and reverse-polarity protection.
- IP67 degree of protection.
Reliable Non-Contact Metal Detection
Inductive proximity sensors detect metallic objects by generating an electromagnetic field at the sensing face and monitoring changes caused when a conductive target enters the detection zone. Because the target does not need to make physical contact with the sensor, this technology provides a durable alternative to mechanical switches in repetitive industrial applications.
The Carlo Gavazzi EI1204PPOSL combines this proven sensing principle with a stainless steel M12 housing, 4 mm sensing distance and PNP normally open switching. Its 500 Hz switching capability supports responsive position and presence detection, while the integral 2 m cable provides convenient fixed wiring into machinery and control systems.
Typical Applications
- Industrial machine position detection.
- Metal component presence sensing.
- End-position and travel monitoring.
- Conveyor and material handling systems.
- Automated assembly machinery.
- Packaging and production equipment.
- Factory automation and process sequencing.
- OEM machinery and industrial control systems.
