Why Choose the Carlo Gavazzi EI1204PPOSS-5M Inductive Proximity Sensor?

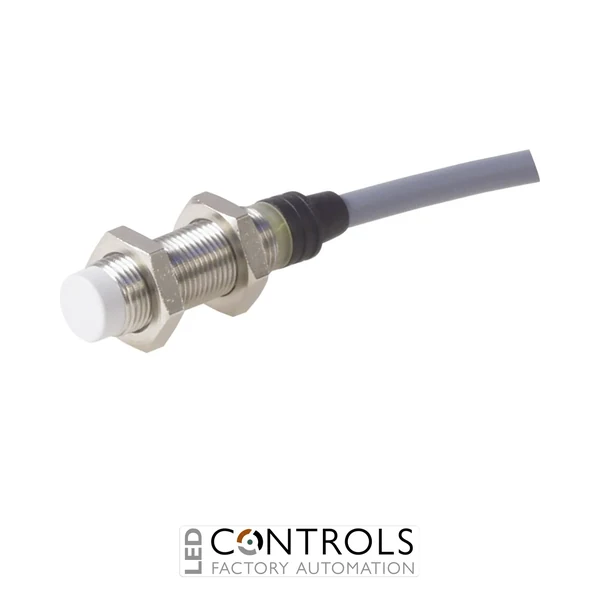

The Carlo Gavazzi EI1204PPOSS-5M is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation, machinery and control applications. Part of the Carlo Gavazzi EI12 series, it combines a short stainless steel cylindrical housing with dependable DC switching technology for accurate position and presence detection.
The EI1204PPOSS-5M features a 4 mm rated sensing distance, non-flush mounting and a PNP normally open output. This extended-distance M12 configuration provides useful sensing performance where a little more clearance between the sensor face and metallic target is desirable, while its three-wire PNP interface is suitable for connection to compatible PLC and machine-control inputs.
Operating from a 10–40 V DC supply, the sensor supports output currents up to 200 mA and a maximum switching frequency of 500 Hz. This 5M version is supplied with a 5 m cable, providing additional wiring reach compared with the standard 2 m version. Its stainless steel construction, IP67 protection and integrated electrical protection make it suitable for demanding industrial installations.
Key Advantages
- Compact M12 inductive proximity sensor for reliable metallic target detection.
- 4 mm rated sensing distance provides extended detection range in an M12 housing.
- PNP normally open output supports straightforward PLC and controller integration.
- Durable stainless steel housing provides robust industrial construction.
- Supplied with an extended 5 m cable for installations requiring additional wiring reach.
- Fast 500 Hz switching frequency supports responsive machine sensing.
- 10–40 V DC operating range suits common industrial control supplies.
- IP67 protection supports use in dusty and wet industrial environments.
Key Features
- Carlo Gavazzi EI12 inductive sensor series.
- Inductive sensing principle for metallic targets.
- M12 stainless steel cylindrical threaded housing.
- Short-body construction.
- 4 mm rated operating distance.
- Non-flush mounting configuration.
- PNP normally open output.
- Three-wire DC configuration.
- 10–40 V DC supply voltage.
- Maximum output current of 200 mA.
- Maximum switching frequency of 500 Hz.
- 5 m factory-fitted cable.
- LED indication for output status.
- Short-circuit, reverse-polarity and transient protection.
Reliable Extended-Range Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI1204PPOSS-5M generate an electromagnetic field at the sensing face and detect changes caused by metallic targets entering that field. This enables contactless position and presence detection without the mechanical wear associated with conventional limit switches, making the sensor well suited to repetitive automated machinery.
The 4 mm sensing distance provides increased detection range compared with standard 2 mm M12 inductive sensors, while the non-flush installation arrangement allows the required sensing field to develop around the sensor face. Combined with a PNP normally open output and a 5 m cable, the EI1204PPOSS-5M provides a practical solution for industrial installations where the sensor must be positioned farther from the control cabinet or junction point.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Conveyor and material handling systems.
- Automated assembly equipment.
- Machine tool position monitoring.
- Production line sensing and counting.
- PLC-controlled machinery.
- Applications requiring an extended 5 m sensor cable.
