Why Choose the Carlo Gavazzi EI1805NPOPL Inductive Proximity Sensor?

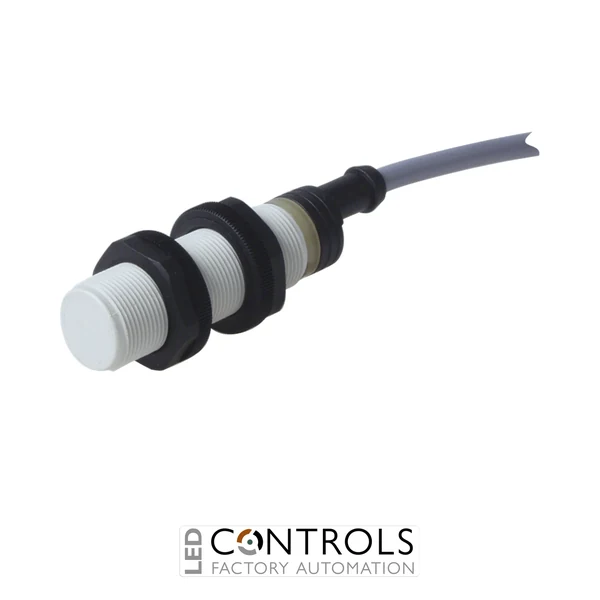

The Carlo Gavazzi EI1805NPOPL is a compact and dependable M18 inductive proximity sensor designed for non-contact detection of metallic targets in industrial automation and machine-control applications. Part of the Carlo Gavazzi EI18 family, it combines a long-body thermoplastic polyester housing with an NPN normally open output and integral cable connection.
Using inductive sensing technology, the EI1805NPOPL detects metallic objects without physical contact, helping reduce mechanical wear in repetitive industrial processes. Its 5 mm rated operating distance and flush-mountable construction make it suitable for machine positioning, component presence detection, end-position monitoring and automated process sequencing.
The EI1805NPOPL operates from a 10–40 V DC supply, supports an output current up to 200 mA and provides a maximum switching frequency of 500 Hz. A 2 m integral cable, M18 threaded barrel and IP67 protection provide a practical sensing solution for industrial machinery and factory automation.
Key Advantages
- Reliable non-contact detection of metallic targets.
- Compact M18 cylindrical threaded format for industrial machinery.
- 5 mm rated operating distance for dependable proximity detection.
- Flush-mountable design supports installation within surrounding metal.
- NPN normally open output for compatible PLC and control inputs.
- Wide 10–40 V DC supply range suits industrial automation systems.
- Maximum output current of 200 mA.
- Fast 500 Hz maximum switching frequency supports responsive machine sensing.
- 2 m integral cable provides straightforward fixed wiring.
- IP67 protection supports use in demanding industrial environments.
Key Features
- Carlo Gavazzi EI18 series inductive proximity sensor.
- M18 cylindrical threaded barrel.
- Long-body construction.
- Thermoplastic polyester housing.
- 5 mm rated sensing distance.
- Flush / shielded mounting configuration.
- NPN transistor output.
- Normally open (NO) switching function.
- 10–40 V DC rated power supply.
- Maximum output current of 200 mA.
- Maximum switching frequency of 500 Hz.
- 2 m integral cable.
- LED indication for output status.
- Short-circuit and reverse-polarity protection.
- IP67 degree of protection.
Reliable Inductive Detection for Industrial Machinery
Inductive proximity sensors detect metallic objects by generating an electromagnetic field at the sensing face and monitoring changes caused when a conductive target enters the detection zone. Since there is no physical contact between the sensor and target, this sensing principle provides a durable solution for repetitive applications where mechanical switches can be subject to wear.
The Carlo Gavazzi EI1805NPOPL combines this proven sensing technology with a flush-mountable M18 thermoplastic polyester housing, 5 mm sensing distance and NPN normally open switching. Its 500 Hz switching capability supports responsive position and presence detection, while the integral 2 m cable simplifies permanent installation within industrial equipment.
Typical Applications
- Industrial machine position detection.
- Metal component presence sensing.
- End-position and travel monitoring.
- Conveyor and material handling systems.
- Automated assembly machinery.
- Packaging and production equipment.
- Factory automation and process sequencing.
- OEM machinery and industrial control systems.
