Why Choose the Carlo Gavazzi EI1805NPOSL-1 Inductive Proximity Sensor?

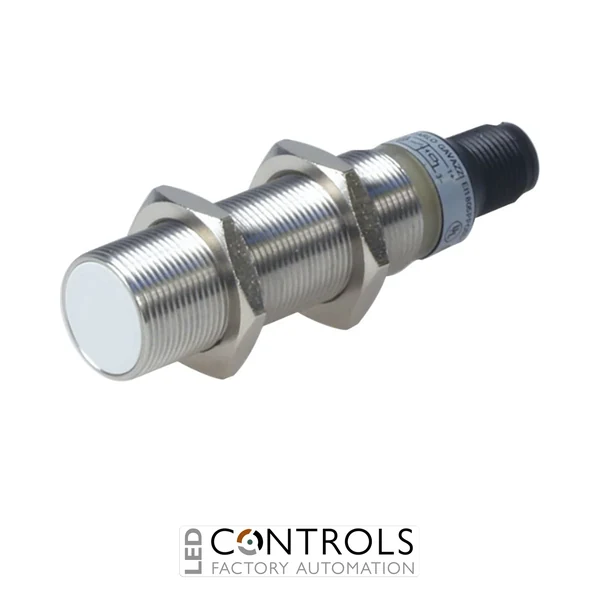

The Carlo Gavazzi EI1805NPOSL-1 is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. Part of the Carlo Gavazzi EI18 family, it combines a stainless steel long-body housing with an NPN normally open output and convenient M12 plug connection.
Using inductive sensing technology, the EI1805NPOSL-1 detects metallic objects without requiring physical contact. Its 5 mm rated operating distance and flush-mountable construction make it suitable for machine positioning, component presence detection, travel monitoring and automated process sequencing where dependable metal detection is required.
The EI1805NPOSL-1 operates from a 10–40 V DC supply, supports a maximum output current of 200 mA and offers a maximum switching frequency of 500 Hz. An M12 plug connection, -25 to +70 °C operating range and IP67 protection provide a practical combination for demanding industrial installations.
Key Advantages
- Reliable non-contact detection of metallic targets.
- Robust M18 stainless steel long-body housing.
- 5 mm rated operating distance for precise proximity detection.
- Flush-mountable design allows installation within surrounding metal.
- NPN normally open output for compatible PLC and control inputs.
- Wide 10–40 V DC supply range for industrial automation systems.
- Maximum output current of 200 mA.
- Fast 500 Hz maximum switching frequency for responsive detection.
- M12 plug connection simplifies installation, servicing and sensor replacement.
- IP67 protection supports use in demanding industrial environments.
Key Features
- Carlo Gavazzi EI18 series inductive proximity sensor.
- M18 cylindrical threaded barrel.
- Stainless steel housing.
- Long-body sensor configuration.
- 5 mm rated sensing distance.
- Flush / shielded mounting configuration.
- NPN transistor output.
- Normally open (NO) switching function.
- 10–40 V DC rated power supply.
- Maximum output current of 200 mA.
- Maximum switching frequency of 500 Hz.
- M12 plug-in connection.
- LED indication for output status.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Inductive Detection for Industrial Machinery
Inductive proximity sensors detect metallic objects by generating an electromagnetic field at the sensing face and responding when a conductive target enters the detection zone. Because detection takes place without physical contact, this technology provides a durable alternative to mechanical switching devices in repetitive industrial applications.
The Carlo Gavazzi EI1805NPOSL-1 combines this proven sensing principle with a stainless steel M18 housing, flush mounting and a 5 mm sensing distance. Its NPN normally open output and 500 Hz switching capability support responsive position and presence detection, while the M12 plug enables convenient installation and replacement within industrial machinery.
Typical Applications
- Industrial machine position detection.
- Metal component presence sensing.
- End-position and travel monitoring.
- Conveyor and material handling systems.
- Automated assembly machinery.
- Packaging and production equipment.
- Factory automation and process sequencing.
- OEM machinery and industrial control systems.
