Why Choose the Carlo Gavazzi EI1805NPOSS-1 Inductive Proximity Sensor?

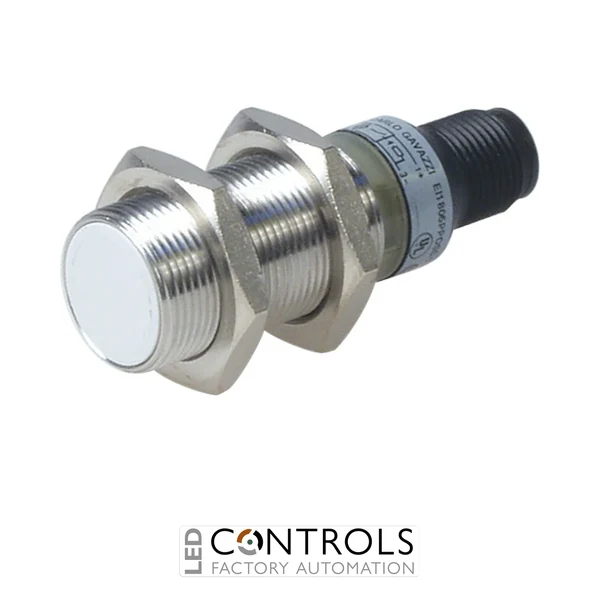

The Carlo Gavazzi EI1805NPOSS-1 is a robust M18 inductive proximity sensor designed for dependable non-contact detection of metallic targets in industrial automation, machinery and control applications. Part of the Carlo Gavazzi EI18 series, it combines a durable stainless steel cylindrical housing with reliable DC switching technology for accurate position and presence monitoring.
The EI1805NPOSS-1 features a 5 mm rated sensing distance, a flush mounting configuration and an NPN normally open output. The compact plug connection version provides a practical solution for installations where fast sensor replacement, simplified wiring and reliable machine feedback are required.
Operating from a 10–40 V DC supply, the sensor supports a maximum switching current of 200 mA and a switching frequency of 500 Hz. Its stainless steel M18 housing, LED indication, electrical protection and IP67 protection rating provide reliable operation in demanding industrial environments.
Key Advantages
- Reliable M18 inductive proximity sensor for industrial metal detection.
- 5 mm sensing distance provides dependable position and presence monitoring.
- NPN normally open output enables straightforward PLC and control-system integration.
- Flush mounting design supports compact installation into machinery.
- Durable stainless steel housing provides robust industrial performance.
- Plug connection simplifies installation, maintenance and replacement.
- 500 Hz switching frequency supports responsive automation applications.
- IP67 protection supports operation in dusty and wet industrial environments.
Key Features
- Carlo Gavazzi EI18 inductive sensor series.
- Inductive sensing technology for metallic targets.
- M18 stainless steel cylindrical housing.
- 5 mm rated operating distance.
- Flush mounting configuration.
- NPN normally open output.
- 10–40 V DC supply voltage.
- 200 mA maximum output current.
- 500 Hz maximum switching frequency.
- Plug connection.
- LED output indication.
- Short-circuit, reverse-polarity and transient protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI1805NPOSS-1 detect metallic targets through an electromagnetic sensing field, providing accurate position feedback without physical contact. This allows dependable operation in repetitive automation processes while avoiding mechanical wear associated with traditional limit switches.
The EI1805NPOSS-1 combines a rugged M18 stainless steel body with flush installation, fast switching performance and a convenient plug connection. These features make it suitable for machine builders and automation engineers requiring reliable metallic object detection in industrial production systems.
Typical Applications
- Industrial machine position sensing.
- Metal component detection and counting.
- Automation equipment and assembly systems.
- Conveyor and material handling machinery.
- Machine tool applications.
- Production line monitoring.
- Robotic and manufacturing systems.
- PLC-controlled industrial equipment.
