Why Choose the Carlo Gavazzi EI1805PPOSL-1 Inductive Proximity Sensor?

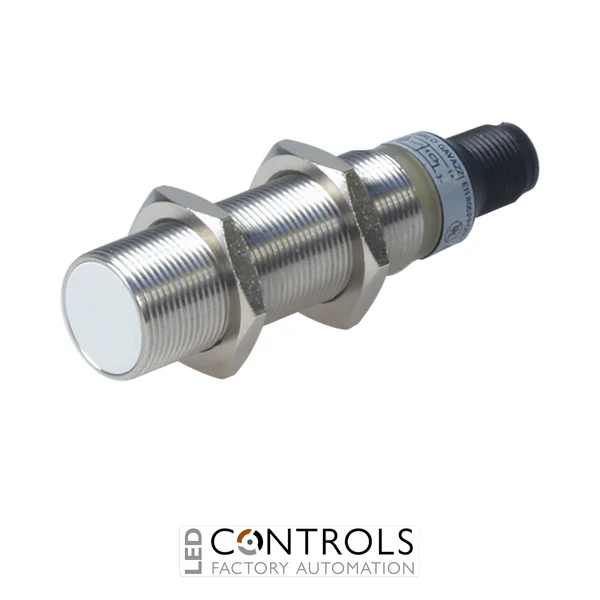

The Carlo Gavazzi EI1805PPOSL-1 is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi EI18 series, it combines a stainless steel cylindrical threaded housing with a PNP normally open output for straightforward integration with PLCs, machine controllers and industrial control equipment.
The sensor provides a rated operating distance of 5 mm and is designed for flush mounting, allowing it to be installed within surrounding metal for compact machine installations. Inductive sensing enables metallic targets to be detected without physical contact, reducing mechanical wear and providing dependable repetitive switching for position, presence and component detection.
With a 10–40 V DC rated power supply, maximum output current of 200 mA and maximum switching frequency of 500 Hz, the EI1805PPOSL-1 provides responsive detection for industrial automation. Its stainless steel M18 housing, M12 plug connection, LED indication and IP67 protection rating make it suitable for demanding production and machine-building environments.
Key Advantages
- Reliable non-contact detection of metallic targets in industrial machinery.
- 5 mm rated operating distance for accurate presence and position sensing.
- Flush-mount configuration enables compact installation within surrounding metal.
- PNP normally open output for straightforward PLC and control-system integration.
- Durable M18 stainless steel housing for demanding industrial environments.
- M12 plug connection simplifies installation, maintenance and sensor replacement.
Key Features
- Carlo Gavazzi EI18 inductive proximity sensor series.
- M18 cylindrical threaded stainless steel housing.
- 5 mm rated operating distance.
- Flush mounting configuration.
- PNP normally open (NO), 3-wire output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 500 Hz maximum switching frequency.
- M12 plug-in connection.
- LED indication for output status.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects using an electromagnetic sensing field, allowing targets to be monitored without physical contact. This contactless operating principle reduces mechanical wear and provides reliable repetitive detection for machine positioning, component presence, counting and automated production sequences.
The EI1805PPOSL-1 combines a 5 mm sensing distance with flush mounting and a 500 Hz maximum switching frequency, providing responsive detection for automated machinery. Its stainless steel construction, protected electronics, M12 connector and IP67 enclosure support dependable operation in industrial production environments.
Typical Applications
- Metal component presence detection.
- Machine position and end-of-travel sensing.
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Counting and positioning of metallic components.
- OEM machinery and PLC-controlled automation systems.
