Why Choose the Carlo Gavazzi EI1805TBOPL Inductive Proximity Sensor?

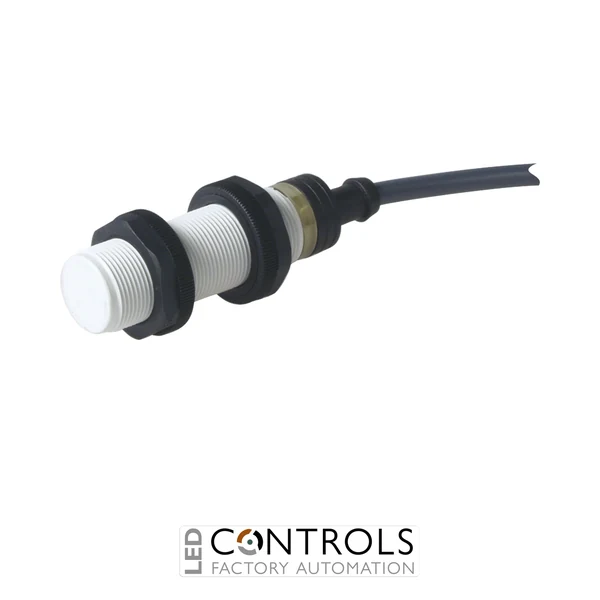

The Carlo Gavazzi EI1805TBOPL is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. Part of the Carlo Gavazzi EI series, it combines a long-body thermoplastic polyester housing with a two-wire SCR normally open output and integral cable connection.
Using inductive sensing technology, the EI1805TBOPL detects metallic objects without requiring physical contact. Its 5 mm rated operating distance and flush-mountable configuration make it suitable for machine positioning, component presence detection, end-position monitoring and automated process sequencing.
The EI1805TBOPL operates from a 20–250 V AC supply, supports an output current up to 500 mA and has a maximum switching frequency of 25 Hz. A 2 m integral cable, -25 to +70 °C operating range and IP67 protection provide a dependable sensing solution for industrial machinery and automation systems.
Key Advantages
- Reliable non-contact detection of metallic targets.
- Compact M18 cylindrical threaded format for industrial machinery.
- 5 mm rated operating distance for precise proximity detection.
- Flush-mountable design supports installation within surrounding metal.
- Two-wire SCR normally open output for compatible AC control circuits.
- Wide 20–250 V AC supply range.
- Maximum output current of 500 mA.
- 2 m integral cable provides straightforward permanent wiring.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi EI series inductive proximity sensor.
- M18 cylindrical threaded barrel.
- Long-body sensor construction.
- Thermoplastic polyester housing.
- 5 mm rated sensing distance.
- Flush mounting configuration.
- Two-wire SCR output.
- Normally open (NO) switching function.
- 20–250 V AC rated power supply.
- Maximum output current of 500 mA.
- Maximum switching frequency of 25 Hz.
- 2 m integral cable.
- Yellow LED output indication.
- IP67 degree of protection.
Reliable Inductive Detection for AC Control Systems
Inductive proximity sensors detect metallic objects by generating an electromagnetic field at the sensing face and responding when a conductive target enters the detection zone. Since the target does not need to physically contact the sensor, this technology provides a durable alternative to mechanically actuated switches in repetitive industrial applications.
The Carlo Gavazzi EI1805TBOPL combines this proven sensing principle with a flush-mountable M18 housing and two-wire SCR switching. Its 5 mm sensing distance provides precise metal detection, while the 20–250 V AC supply range enables direct integration with compatible AC industrial control circuits.
Typical Applications
- Industrial machine position detection.
- Metal component presence sensing.
- End-position and travel monitoring.
- Conveyor and material handling systems.
- Automated assembly machinery.
- Packaging and production equipment.
- Factory automation and process sequencing.
- OEM machinery using compatible AC control circuits.
