Why Choose the Carlo Gavazzi EI1808NPCSS-1 Inductive Proximity Sensor?

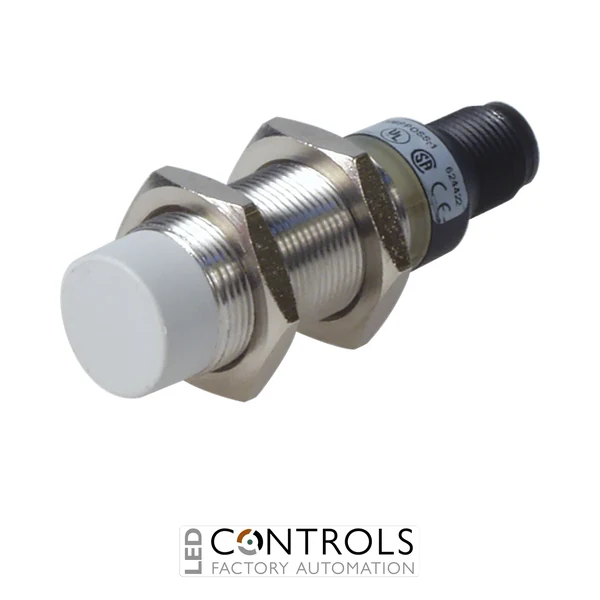

The Carlo Gavazzi EI1808NPCSS-1 is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi EI18 series, it combines a short-body stainless steel cylindrical housing with an NPN normally closed output for integration with PLCs, machine controllers and industrial control equipment.
The sensor provides a rated operating distance of 8 mm and uses a non-flush, unshielded mounting configuration, providing extended sensing range compared with flush M18 variants. Its inductive operating principle detects metallic targets without physical contact, reducing mechanical wear while supporting repetitive position, presence and component detection.
With a 10–40 V DC rated power supply, maximum output current of 200 mA and maximum switching frequency of 400 Hz, the EI1808NPCSS-1 provides responsive sensing for industrial automation. Its compact stainless steel construction, M12 plug connection, LED indication and IP67 protection rating make it well suited to demanding machine installations.
Key Advantages
- Reliable non-contact detection of metallic targets in industrial machinery.
- 8 mm rated operating distance provides extended sensing capability.
- Non-flush, unshielded mounting for applications requiring increased detection range.
- NPN normally closed output for integration with compatible PLC and control-system inputs.
- Durable M18 stainless steel short-body housing for industrial environments.
- M12 plug connection simplifies installation, maintenance and sensor replacement.
Key Features
- Carlo Gavazzi EI18 inductive proximity sensor series.
- M18 cylindrical threaded stainless steel housing.
- 8 mm rated operating distance.
- Non-flush, unshielded sensing configuration.
- NPN normally closed (NC), 3-wire output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 400 Hz maximum switching frequency.
- M12 plug-in connection.
- LED indication for sensor output status.
- Short-body configuration for compact machine installation.
- IP67 degree of protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects by generating an electromagnetic sensing field and responding when a metal target enters the detection area. As no physical contact is required, the EI1808NPCSS-1 provides repetitive sensing without the mechanical wear associated with conventional contact-operated limit switches.
The EI1808NPCSS-1 combines an extended 8 mm sensing distance with a 400 Hz maximum switching frequency and NPN normally closed output. Its non-flush M18 design, stainless steel construction, M12 connector and IP67 protection make it a dependable choice for machine builders and industrial automation engineers.
Typical Applications
- Metal component presence detection.
- Machine position and end-of-travel sensing.
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Counting and positioning of metallic components.
- OEM machinery and PLC-controlled automation systems.
