Why Choose the Carlo Gavazzi EI1808NPCSS Inductive Proximity Sensor?

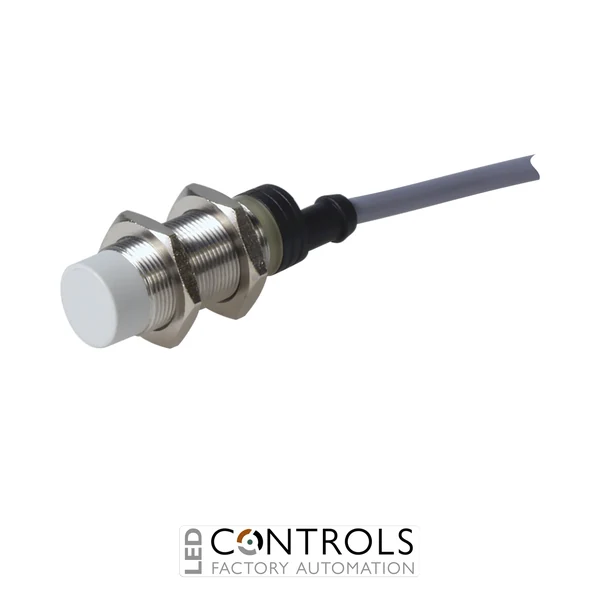

The Carlo Gavazzi EI1808NPCSS is a robust M18 stainless-steel inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi EI18 sensor range, it combines an extended 8 mm sensing distance, short-body construction and cable connection for dependable integration into industrial equipment.
The EI1808NPCSS provides a rated operating distance of 8 mm and features an NPN normally closed (NC), 3-wire output. Its non-flush inductive sensing design enables metallic objects to be detected without physical contact, helping minimise mechanical wear while supporting repetitive position and presence detection.
Operating from a 10–40 V DC supply, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 400 Hz. Its stainless-steel M18 housing, factory-fitted 2 m cable and IP67 protection make it well suited to demanding industrial automation applications.
Key Advantages
- Reliable non-contact detection of metallic targets for industrial automation.
- 8 mm rated operating distance provides extended sensing capability.
- NPN normally closed output for compatible DC control systems.
- Non-flush M18 sensing design for reliable extended-range detection.
- Durable stainless-steel short-body housing for industrial applications.
- Factory-fitted 2 m cable simplifies installation and wiring.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi EI18 inductive proximity sensor range.
- M18 cylindrical threaded barrel.
- 8 mm rated operating distance.
- Non-flush mounting configuration.
- NPN normally closed (NC), 3-wire output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 400 Hz maximum switching frequency.
- Short-body stainless-steel construction.
- Factory-fitted 2 m cable.
- LED output indication.
- IP67 ingress protection.
- -25 to +70 °C operating temperature range.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic objects without requiring physical contact between the sensor and target. This contactless operating principle reduces mechanical wear and provides dependable switching for repetitive position sensing, component detection, counting and machine status monitoring.
The EI1808NPCSS combines an extended 8 mm sensing distance with an M18 stainless-steel housing and NPN normally closed output. Its compact short-body construction and 2 m cable make it suitable for integration into machinery, conveyors, automated production equipment and compatible PLC-based control systems.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Automated assembly and production equipment.
- Packaging and processing machinery.
- PLC-based industrial automation systems.
