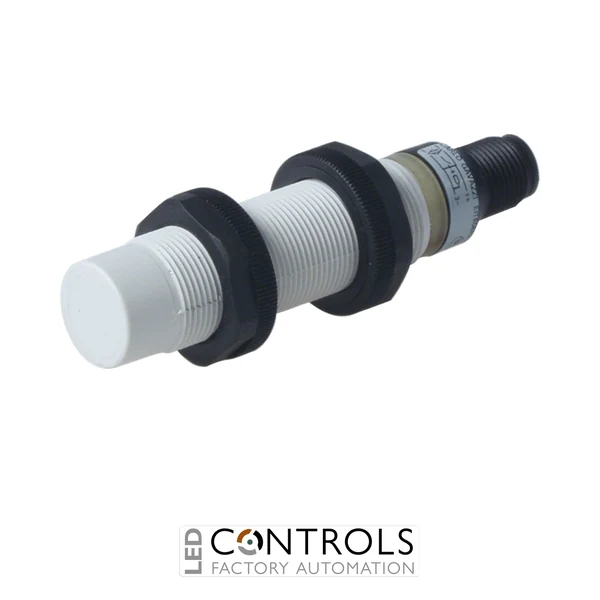

Why Choose the Carlo Gavazzi EI1808PPCPL-1 Inductive Proximity Sensor?
The Carlo Gavazzi EI1808PPCPL-1 is a reliable M18 inductive proximity sensor designed for non-contact detection of metallic objects in industrial machinery and automation systems. As part of the established Carlo Gavazzi EI18 series, it combines a thermoplastic cylindrical threaded housing with a three-wire PNP normally closed output for straightforward integration with PLCs, controllers and industrial automation equipment.
This sensor provides a rated operating distance of 8 mm and features a non-flush sensing configuration, providing extended detection range from its M18 format. Its long-body construction offers practical mounting flexibility, while the inductive sensing principle enables repeated detection without physical contact or the mechanical wear associated with conventional limit switches.
With a 10–40 V DC supply, maximum output current of 200 mA and maximum switching frequency of 400 Hz, the EI1808PPCPL-1 is suitable for responsive position, presence and movement detection. Its M12 plug connection simplifies installation and replacement, while an IP67 protection rating supports reliable operation in demanding industrial environments.
Key Advantages
- Reliable M18 inductive proximity sensor for metallic object detection.
- 8 mm rated operating distance provides extended sensing range.
- PNP normally closed output for compatible PLC and industrial control inputs.
- 10–40 V DC supply range suitable for industrial automation systems.
- Durable thermoplastic long-body housing for machinery installations.
- Non-flush sensing configuration supports the extended 8 mm detection distance.
- Fast 400 Hz maximum switching frequency for responsive machine sensing.
- M12 plug connection simplifies installation, replacement and maintenance.
- IP67 protection supports dependable operation in dusty and wet environments.
Key Features
- Carlo Gavazzi EI18 series inductive proximity sensor.
- M18 threaded cylindrical housing.
- 8 mm rated operating distance.
- Three-wire PNP normally closed (NC) output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 400 Hz maximum switching frequency.
- M12 plug-in electrical connection.
- Long-body thermoplastic construction.
- Non-flush / unshielded sensing configuration.
- LED status indication.
- Non-contact operation for reduced mechanical wear.
- IP67 rated enclosure.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI1808PPCPL-1 detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable metal object enters the detection zone, allowing machinery to monitor component position, presence and movement while avoiding the mechanical wear associated with contact-operated switches.
The EI1808PPCPL-1 is designed for industrial DC automation systems requiring reliable PNP normally closed switching and extended sensing capability. Its thermoplastic M18 long-body housing, 8 mm sensing distance, non-flush configuration and 400 Hz switching frequency make it suitable for machine building, production equipment and material handling applications.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- Component counting and positioning applications.
- PLC-controlled industrial automation systems.
