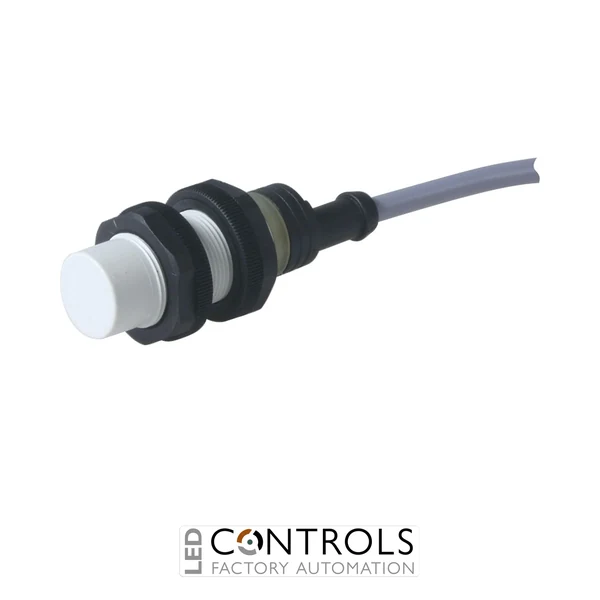

Why Choose the Carlo Gavazzi EI1808PPOPS Inductive Proximity Sensor?
The Carlo Gavazzi EI1808PPOPS is a compact M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine control applications. Part of the established Carlo Gavazzi EI18 inductive sensor series, it combines a thermoplastic threaded housing, short-body construction and pre-wired cable connection for straightforward integration into industrial equipment.
This sensor provides an 8 mm rated operating distance together with a PNP normally open (NO) switching output. Its non-flush sensing configuration provides extended detection range compared with shorter-range M18 variants, making it suitable for presence, position and movement detection throughout automated machinery.
With a 10–40 V DC supply range, maximum output current of 200 mA, switching frequency up to 400 Hz and IP67 protection, the EI1808PPOPS provides fast and dependable sensing for conveyors, assembly equipment, packaging machinery and general factory automation.
Key Advantages
- Compact M18 inductive proximity sensor for industrial automation.
- 8 mm sensing distance provides reliable non-contact metal detection.
- PNP normally open output for integration with compatible PLC and control inputs.
- Fast 400 Hz maximum switching frequency supports rapid machine processes.
- Durable thermoplastic housing in a space-saving short-body format.
- Pre-wired 2 m cable simplifies connection and installation.
- IP67 protection rating supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi EI18 inductive sensor series.
- M18 cylindrical threaded barrel construction.
- 8 mm rated operating distance.
- Non-flush mounting sensing configuration.
- PNP normally open (NO) output.
- 10–40 V DC power supply.
- Maximum output current of 200 mA.
- Maximum switching frequency of 400 Hz.
- 2 m pre-wired cable connection.
- Compact short-body design.
- Operating temperature range from -25 °C to +70 °C.
- IP67 ingress protection.
- LED indication for output status.
- Protection against short circuit and reverse polarity.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI1808PPOPS detect metallic targets using an electromagnetic sensing field without requiring physical contact. This contactless operating principle eliminates mechanical switch wear and enables repeatable position and presence detection during high-cycle industrial processes.
The EI1808PPOPS combines an extended 8 mm sensing distance with a fast PNP switching output and compact M18 construction. Its high switching frequency makes it suitable for monitoring rapidly moving components, while IP67 protection and integrated electrical protection features support dependable operation in industrial machinery.
Typical Applications
- Industrial machinery position and presence sensing.
- Conveyor and material handling systems.
- Automated assembly equipment.
- Packaging and production machinery.
- Metal component detection and counting.
- End-position and machine-state monitoring.
- PLC-based factory automation systems.
- OEM machinery and automated production equipment.
