Why Choose the Carlo Gavazzi EI1808PPOSS-1 Inductive Proximity Sensor?

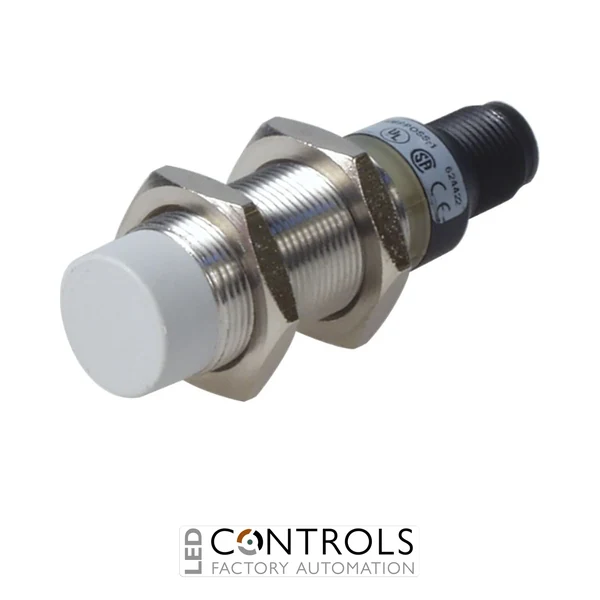

The Carlo Gavazzi EI1808PPOSS-1 is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi EI18 series, it combines a short-body stainless steel cylindrical threaded housing with a PNP normally open output for straightforward integration with PLCs, machine controllers and industrial control equipment.
The sensor provides a rated operating distance of 8 mm and uses a non-flush, unshielded sensing configuration, providing an extended sensing range for metallic targets. Its inductive operating principle eliminates physical contact with the target, reducing mechanical wear while providing dependable repetitive presence, position and component detection.
With a 10–40 V DC rated power supply, maximum output current of 200 mA and maximum switching frequency of 400 Hz, the EI1808PPOSS-1 provides responsive sensing for industrial automation. Its compact stainless steel housing, 4-pin M12 plug connection, LED indication and IP67 protection rating make it suitable for demanding machine-building and production environments.
Key Advantages
- Reliable non-contact detection of metallic targets in industrial machinery.
- 8 mm rated operating distance provides extended sensing capability.
- Non-flush, unshielded configuration for applications requiring increased detection range.
- PNP normally open output for straightforward PLC and machine-control integration.
- Compact M18 stainless steel short-body housing for space-conscious installations.
- 4-pin M12 plug connection simplifies installation, maintenance and sensor replacement.
Key Features
- Carlo Gavazzi EI18 inductive proximity sensor series.
- M18 cylindrical threaded stainless steel housing.
- Short-body design for compact machine installation.
- 8 mm rated operating distance.
- Non-flush, unshielded sensing configuration.
- PNP normally open (NO), 3-wire output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 400 Hz maximum switching frequency.
- 4-pin M12 plug-in connection.
- LED indication for output status.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects by generating an electromagnetic sensing field and responding when a metal target enters the detection area. Because no physical contact is required, the EI1808PPOSS-1 provides repetitive sensing without the mechanical wear associated with conventional contact-operated limit switches.
The EI1808PPOSS-1 combines an extended 8 mm sensing distance with a 400 Hz maximum switching frequency and PNP normally open output. Its short stainless steel M18 construction, protected electronics and M12 connector make it a dependable choice for machine builders and industrial automation engineers requiring compact, robust metal detection.
Typical Applications
- Metal component presence detection.
- Machine position and end-of-travel sensing.
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Counting and positioning of metallic components.
- Machine tools and manufacturing equipment.
- OEM machinery and PLC-controlled automation systems.
