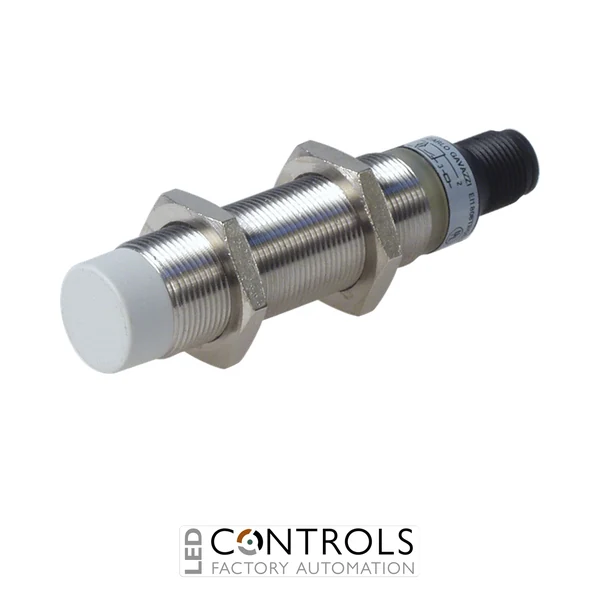

Why Choose the Carlo Gavazzi EI1808TBCSL-6 Inductive Proximity Sensor?
The Carlo Gavazzi EI1808TBCSL-6 is a robust and reliable inductive proximity sensor designed for accurate non-contact detection of metallic objects in industrial automation, machinery and control applications. Part of the proven Carlo Gavazzi EI series, this M18 stainless steel sensor provides dependable sensing performance in demanding industrial environments.
Featuring a stainless steel threaded barrel housing and a SCR normally closed (NC) output, the EI1808TBCSL-6 provides reliable AC switching for machine control, position monitoring and object detection tasks. Its M12 plug connection, long body design and IP67 protection make it suitable for a wide range of industrial installations.
With an 8 mm sensing distance, 20–250 V AC supply range and M12 connector connection, the Carlo Gavazzi EI1808TBCSL-6 is ideal for detecting metallic targets in automated production equipment, conveyors and mechanical systems.
Key Advantages
- Reliable inductive proximity sensor for industrial automation applications.
- 8 mm sensing distance for accurate metallic object detection.
- SCR normally closed (NC) output for AC switching applications.
- Durable M18 stainless steel threaded housing for industrial environments.
- IP67 protection rating provides resistance against dust and water ingress.
- M12 connector design enables simple installation and replacement.
Key Features
- Carlo Gavazzi EI series inductive proximity sensor.
- M18 cylindrical threaded barrel design.
- SCR normally closed (NC) output.
- 8 mm rated operating distance.
- 20–250 V AC supply voltage range.
- 500 mA maximum output current.
- 25 Hz maximum switching frequency.
- M12 plug connection.
- Integrated LED indication.
- Non-contact sensing technology for long operational life.
Reliable Industrial Object Detection
Inductive proximity sensors such as the Carlo Gavazzi EI1808TBCSL-6 provide accurate and repeatable detection without mechanical contact. By sensing metallic targets through an electromagnetic field, they help improve machine reliability while reducing wear compared with traditional mechanical switches.
The EI series is designed for industrial automation engineers and machine builders requiring dependable sensors for position feedback, counting, presence detection and process monitoring applications.
Typical Applications
- Industrial automation and machine control systems.
- Conveyor and material handling equipment.
- Position and end-of-travel detection.
- Assembly and production machinery.
- Metal object detection applications.
- OEM machinery and automated manufacturing systems.
