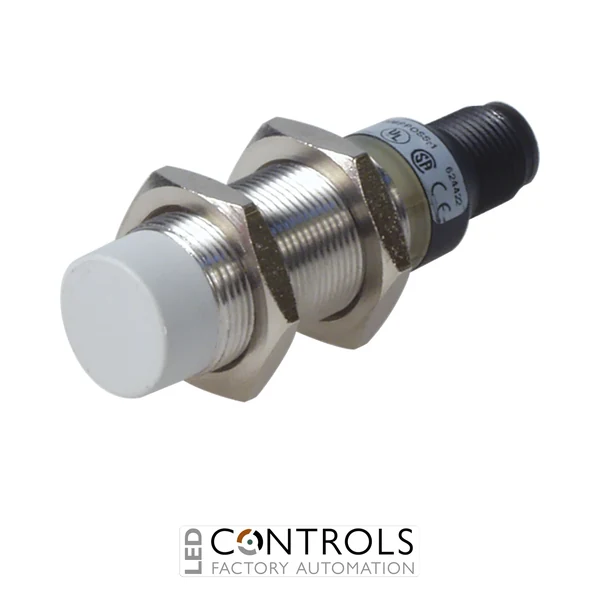

Why Choose the Carlo Gavazzi EI1808TBOSS-6 Inductive Proximity Sensor?
The Carlo Gavazzi EI1808TBOSS-6 is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine control applications. Part of the established Carlo Gavazzi EI18 inductive sensor series, it combines a stainless steel threaded housing, compact short-body construction and an M12 connector for straightforward installation and maintenance.
This sensor provides an 8 mm rated operating distance with a two-wire AC SCR normally open (NO) output. Its M18 cylindrical format is well suited to position, presence and machine-state detection, while the non-contact inductive sensing principle eliminates mechanical switching wear and supports repeatable operation in automated machinery.
With a 20–250 V AC supply range, maximum output current of 500 mA, maximum switching frequency of 25 Hz and IP67 protection, the EI1808TBOSS-6 provides a dependable sensing solution for conveyors, production equipment, material handling machinery and general factory automation.
Key Advantages
- Reliable M18 inductive proximity sensing for industrial automation applications.
- 8 mm rated operating distance for dependable metallic object detection.
- Two-wire AC SCR normally open output for compatible industrial control circuits.
- Durable stainless steel threaded housing for industrial environments.
- Short-body construction helps simplify installation where mounting space is restricted.
- M12 connector enables convenient wiring, sensor replacement and maintenance.
- Maximum output current of 500 mA for compatible loads.
- IP67 protection rating supports dependable operation in demanding conditions.
Key Features
- Carlo Gavazzi EI18 inductive sensor series.
- M18 cylindrical threaded barrel construction.
- Stainless steel housing.
- Short-body sensor design.
- 8 mm rated sensing distance.
- Two-wire AC SCR normally open (NO) output.
- 20–250 V AC rated power supply.
- Maximum output current of 500 mA.
- Maximum switching frequency of 25 Hz.
- M12 connector electrical connection.
- Operating temperature range from -25 °C to +70 °C.
- IP67 ingress protection.
- LED output status indication.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI1808TBOSS-6 detect metallic targets using an electromagnetic sensing field without requiring physical contact. This contactless operating principle eliminates mechanical switch wear and provides repeatable position and presence detection for high-cycle industrial machinery.
The EI1808TBOSS-6 combines an 8 mm sensing distance with a two-wire AC SCR output, stainless steel construction and a convenient M12 connector. Its compact short-body design facilitates installation in space-conscious machinery, while IP67 protection helps provide reliable sensing performance in industrial automation environments.
Typical Applications
- Industrial machinery position and presence sensing.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Metal component presence detection.
- Automated assembly equipment.
- End-position and machine-state monitoring.
- Manufacturing and processing equipment.
- OEM machinery and factory automation systems.
