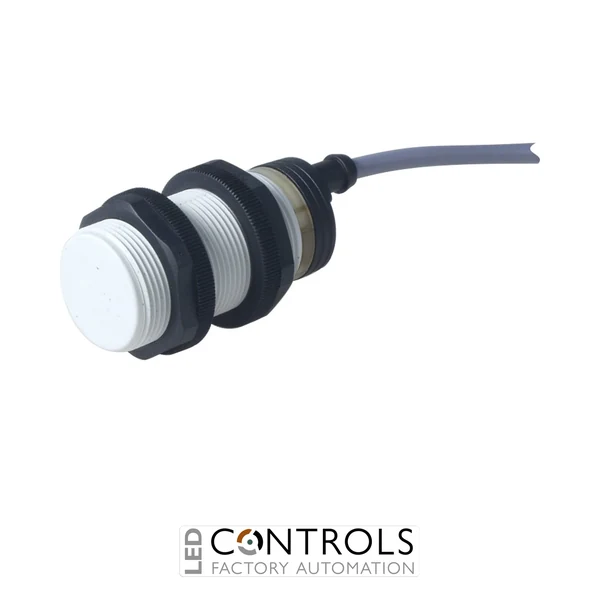

Why Choose the Carlo Gavazzi EI3010PPOPL Inductive Proximity Sensor?
The Carlo Gavazzi EI3010PPOPL is a reliable M30 inductive proximity sensor designed for non-contact detection of metallic objects in industrial machinery and automation systems. Part of the established Carlo Gavazzi EI30 series, it combines a thermoplastic cylindrical housing with a three-wire PNP normally open output for straightforward integration with PLCs, controllers and industrial automation equipment.
This sensor provides a rated operating distance of 10 mm and features a flush-mountable sensing configuration. Its M30 long-body construction provides practical mounting flexibility, while the inductive sensing principle enables repeated detection without physical contact, reducing mechanical wear compared with conventional limit switches.
With a rated power supply of 10–40 V DC, maximum output current of 200 mA and maximum switching frequency of 300 Hz, the EI3010PPOPL is well suited to responsive position, presence and movement detection. Its factory-fitted 2 m cable, thermoplastic housing and IP67 protection rating provide dependable performance across a wide range of industrial automation applications.
Key Advantages
- Reliable M30 inductive proximity sensor for metallic object detection.
- 10 mm rated operating distance for dependable machine sensing.
- PNP normally open output for compatible PLC and industrial control inputs.
- 10–40 V DC rated power supply suitable for common industrial automation systems.
- 200 mA maximum output current for reliable DC switching.
- Durable thermoplastic long-body housing for industrial machinery installations.
- Flush-mountable design enables convenient integration into machinery and fixtures.
- Fast 300 Hz maximum switching frequency for responsive detection.
- Factory-fitted 2 m cable simplifies electrical installation.
- IP67 protection supports operation in dusty and wet industrial environments.
Key Features
- Carlo Gavazzi EI30 series inductive proximity sensor.
- M30 threaded cylindrical thermoplastic housing.
- 10 mm rated operating distance.
- Three-wire PNP normally open (NO) output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 300 Hz maximum switching frequency.
- 2 m integrated cable for electrical connection.
- Long-body construction for flexible machine installation.
- Flush sensing configuration.
- LED output status indication.
- Short-circuit and reverse-polarity protection.
- Transient protection for dependable industrial operation.
- IP67 rated enclosure.
- Operating temperature range from -25 °C to +70 °C.
Inductive proximity sensors such as the Carlo Gavazzi EI3010PPOPL detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable metal object enters the detection zone, allowing machinery to monitor component position, presence and movement while avoiding the mechanical wear associated with contact-operated switches.
The EI3010PPOPL is particularly suited to industrial DC automation systems requiring a PNP normally open signal. Its M30 thermoplastic housing, 10 mm sensing distance, flush installation design and 300 Hz switching frequency make it a practical choice for machine builders, production equipment and material handling systems.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- Component counting and positioning applications.
- PLC-controlled industrial automation systems.
