Why Choose the Carlo Gavazzi EI3010PPOSS Inductive Proximity Sensor?

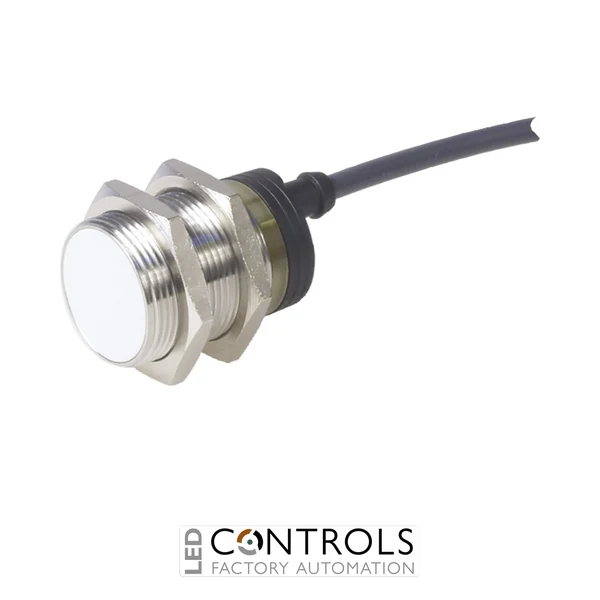

The Carlo Gavazzi EI3010PPOSS is a durable M30 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machine control and production systems. Part of the trusted Carlo Gavazzi EI30 inductive sensor series, it combines a stainless steel threaded barrel housing, short-body construction and a pre-wired cable connection for dependable industrial installation.
This sensor provides a 10 mm rated operating distance with a PNP normally open (NO) output. The flush-mount design allows straightforward installation in metal machine structures, while the inductive sensing principle provides reliable object detection without physical contact or mechanical wear.
With a 10–40 V DC supply range, 200 mA maximum output current, 300 Hz switching frequency and IP67 protection, the EI3010PPOSS is suitable for conveyors, machine tools, packaging equipment, assembly systems and general factory automation applications.
Key Advantages
- Reliable M30 inductive proximity sensor for industrial automation applications.
- 10 mm sensing distance for accurate metallic object detection.
- PNP normally open output for compatibility with modern PLC control systems.
- Robust stainless steel cylindrical housing for industrial durability.
- Flush mounting design supports simple machine integration.
- 2 m cable connection enables direct wiring installation.
- Fast 300 Hz switching frequency supports efficient automation processes.
- IP67 protection rating provides resistance against dust and water ingress.
Key Features
- Carlo Gavazzi EI30 inductive sensor series.
- M30 threaded cylindrical stainless steel housing.
- Short-body sensor construction.
- 10 mm rated operating distance.
- Flush mounting configuration.
- PNP normally open (NO) transistor output.
- 10–40 V DC supply voltage.
- 200 mA maximum output current.
- 300 Hz maximum switching frequency.
- 2 m cable connection.
- LED indication for output status.
- Short-circuit, reverse polarity and transient protection.
- Operating temperature range from -25 °C to +70 °C.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI3010PPOSS detect metallic targets using an electromagnetic field, allowing accurate object sensing without mechanical contact. This technology reduces component wear and provides dependable operation in repetitive industrial processes.
The EI30 series is designed for machine builders and automation engineers requiring robust sensing solutions with simple electrical integration. The stainless steel M30 housing, flush mounting capability and integrated protection features make the EI3010PPOSS suitable for demanding industrial environments.
Typical Applications
- Industrial machinery position sensing.
- Conveyor and material handling systems.
- Packaging and production equipment.
- Machine tool automation.
- Metal component detection and counting.
- Assembly and manufacturing systems.
- PLC-controlled industrial automation.
- OEM machinery applications.
