Why Choose the Carlo Gavazzi EI3015NPCSL Inductive Proximity Sensor?

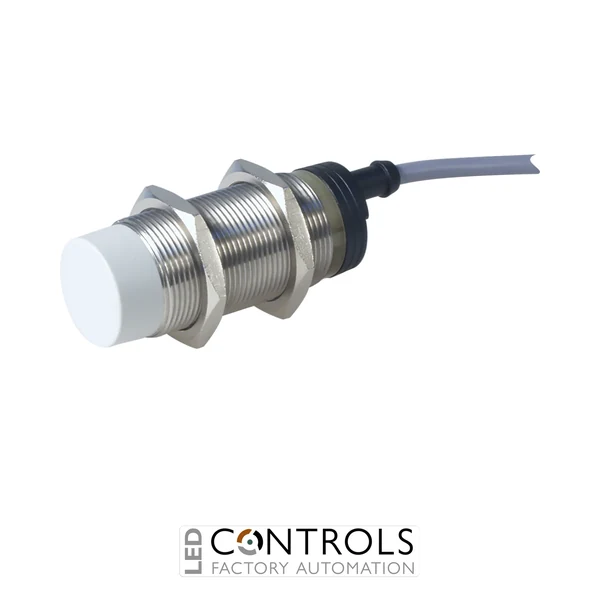

The Carlo Gavazzi EI3015NPCSL is a robust M30 stainless-steel inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi EI30 sensor range, it combines a long-body construction with an extended 15 mm sensing distance and factory-fitted cable for straightforward integration into industrial equipment.
The EI3015NPCSL provides a rated operating distance of 15 mm and features an NPN normally closed (NC) output. Its non-flush inductive sensing design enables metallic objects to be detected without physical contact, helping minimise mechanical wear while providing dependable switching for repetitive position and presence-detection applications.
Operating from a 10–40 V DC supply, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 100 Hz. Its stainless-steel M30 housing, factory-fitted 2 m cable, IP67 protection and -25 to +70 °C operating temperature range make it well suited to demanding industrial automation applications.
Key Advantages
- Reliable non-contact detection of metallic targets for industrial automation.
- 15 mm rated operating distance provides extended sensing capability.
- NPN normally closed output for compatible DC control systems.
- Non-flush M30 sensing design for extended-range metallic-object detection.
- Durable stainless-steel long-body housing for industrial installations.
- Factory-fitted 2 m cable simplifies electrical connection.
- 200 mA maximum output current for compatible industrial control loads.
- IP67 protection supports dependable operation in demanding environments.
Key Features
- Carlo Gavazzi EI30 inductive proximity sensor range.
- M30 cylindrical threaded barrel.
- 15 mm rated operating distance.
- Non-flush mounting configuration.
- NPN normally closed (NC) switching output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 100 Hz maximum switching frequency.
- Long-body stainless-steel construction.
- Factory-fitted 2 m cable.
- IP67 ingress protection.
- -25 to +70 °C operating temperature range.
Extended-Range Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic objects by monitoring changes in an electromagnetic sensing field, allowing targets to be identified without mechanical contact. This contactless operating principle helps reduce physical wear and provides dependable switching for repetitive machine positioning, component detection and process-monitoring duties.
The EI3015NPCSL combines a 15 mm sensing distance with a non-flush M30 stainless-steel housing and NPN normally closed output. Its long-body construction and 2 m cable make it suitable for machinery, conveyors, automated production equipment and compatible PLC-based control systems requiring reliable extended-range metallic-target detection.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Automated assembly and production equipment.
- Packaging and processing machinery.
- PLC-based industrial automation systems.
