Why Choose the Carlo Gavazzi EI3015NPCSS Inductive Proximity Sensor?

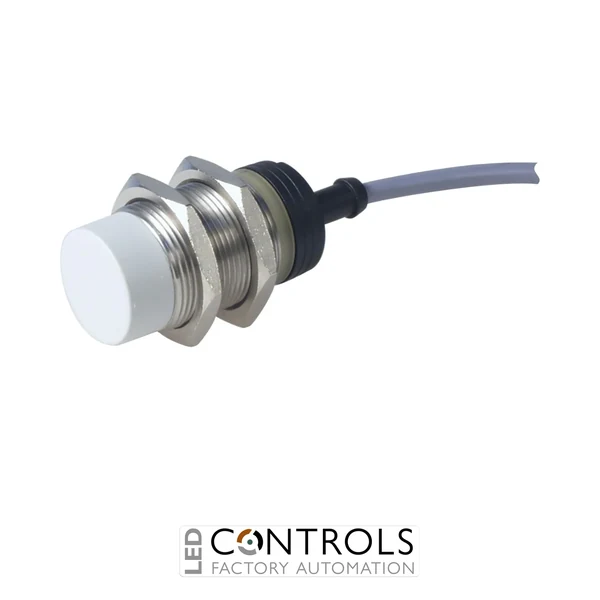

The Carlo Gavazzi EI3015NPCSS is a robust M30 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the established Carlo Gavazzi EI30 series, it combines a stainless steel short-body housing with a three-wire NPN normally closed output for straightforward integration with compatible PLCs, controllers and industrial automation equipment.
This sensor provides a rated operating distance of 15 mm and uses a non-flush mounting configuration, providing an extended sensing range for applications where greater target clearance is required. Its inductive operating principle detects metallic objects without physical contact, reducing mechanical wear compared with conventional limit switches and supporting dependable repetitive sensing.
With a rated power supply of 10–40 V DC, maximum output current of 200 mA and maximum switching frequency of 100 Hz, the EI3015NPCSS is well suited to industrial position, presence and movement detection. Its factory-fitted 2 m cable, stainless steel construction and IP67 protection rating provide dependable performance in demanding industrial environments.
Key Advantages
- Robust M30 inductive proximity sensor for metallic object detection.
- 15 mm rated operating distance provides extended sensing capability.
- NPN normally closed output for compatible PLC and industrial control inputs.
- 10–40 V DC rated power supply suitable for common industrial automation systems.
- 200 mA maximum output current for reliable DC switching.
- Durable stainless steel short-body housing for demanding machinery environments.
- Non-flush mounting configuration supports the extended 15 mm sensing distance.
- 100 Hz maximum switching frequency for dependable machine sensing.
- Factory-fitted 2 m cable simplifies electrical installation.
- IP67 protection supports operation in dusty and wet industrial environments.
Key Features
- Carlo Gavazzi EI30 series inductive proximity sensor.
- M30 threaded cylindrical stainless steel housing.
- 15 mm rated operating distance.
- Three-wire NPN normally closed (NC) output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 100 Hz maximum switching frequency.
- 2 m integrated cable for electrical connection.
- Short-body construction for space-efficient installation.
- Non-flush / unshielded sensing configuration.
- Non-contact operation for reduced mechanical wear.
- IP67 rated enclosure.
- Operating temperature range from -25 °C to +70 °C.
- CE, UL and CSA approvals for industrial applications.
Inductive proximity sensors such as the Carlo Gavazzi EI3015NPCSS detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable metal object enters the detection zone, allowing machinery to monitor component position, presence and movement while avoiding the mechanical wear associated with contact-operated switches.
The EI3015NPCSS is particularly suited to industrial DC automation systems requiring an NPN normally closed signal and greater target clearance. Its M30 stainless steel housing, 15 mm sensing distance, non-flush configuration and compact short-body construction make it a practical choice for machine builders, production equipment and material handling systems.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- Component counting and positioning applications.
- PLC-controlled industrial automation systems.
