Why Choose the Carlo Gavazzi EI3015NPOPS Inductive Proximity Sensor?

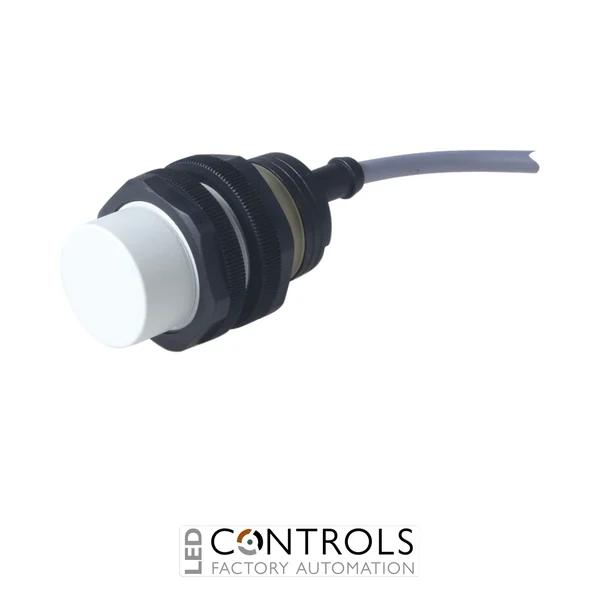

The Carlo Gavazzi EI3015NPOPS is a reliable M30 inductive proximity sensor designed for non-contact detection of metallic objects in industrial machinery and automation systems. Part of the established Carlo Gavazzi EI30 series, it combines a thermoplastic short-body housing with a three-wire NPN normally open output for straightforward integration with compatible PLCs, controllers and industrial automation equipment.
This sensor provides a rated operating distance of 15 mm and uses a non-flush / unshielded mounting configuration, providing extended sensing capability where greater clearance between the sensor and target is required. Its inductive sensing principle detects metallic objects without physical contact, reducing mechanical wear compared with conventional limit switches and supporting reliable repetitive operation.
With a rated power supply of 10–40 V DC, maximum output current of 200 mA and maximum switching frequency of 100 Hz, the EI3015NPOPS is well suited to industrial position, presence and movement detection. Its factory-fitted 2 m cable, compact thermoplastic construction and IP67 protection rating provide a practical sensing solution for demanding automation applications.
Key Advantages
- Reliable M30 inductive proximity sensor for metallic object detection.
- 15 mm rated operating distance provides extended sensing capability.
- NPN normally open output for compatible PLC and industrial control inputs.
- 10–40 V DC rated power supply suitable for common industrial automation systems.
- 200 mA maximum output current for dependable DC switching.
- Durable thermoplastic short-body housing for compact machinery installations.
- Non-flush / unshielded mounting supports the extended 15 mm sensing distance.
- 100 Hz maximum switching frequency for responsive machine sensing.
- Factory-fitted 2 m cable simplifies electrical installation.
- IP67 protection supports operation in dusty and wet industrial environments.
Key Features
- Carlo Gavazzi EI30 series inductive proximity sensor.
- M30 threaded cylindrical thermoplastic housing.
- 15 mm rated operating distance.
- Three-wire NPN normally open (NO) output.
- 10–40 V DC rated power supply.
- 200 mA maximum output current.
- 100 Hz maximum switching frequency.
- 2 m integrated cable for electrical connection.
- Short-body construction for space-efficient installation.
- Non-flush / unshielded sensing configuration.
- LED indication for output status.
- Short-circuit and reverse-polarity protection.
- Transient protection for dependable industrial operation.
- IP67 rated enclosure.
- Operating temperature range from -25 °C to +70 °C.
- CE marking with UL and CSA approvals.
Inductive proximity sensors such as the Carlo Gavazzi EI3015NPOPS detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable metal object enters the detection zone, allowing machinery to monitor component position, presence and movement while avoiding the mechanical wear associated with contact-operated switches.
The EI3015NPOPS is particularly suited to industrial DC automation systems requiring an NPN normally open signal and greater target clearance. Its M30 thermoplastic housing, 15 mm sensing distance, non-flush configuration and compact short-body construction make it a practical choice for machine builders, production equipment, conveyors and material handling systems.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- Component counting and positioning applications.
- PLC-controlled industrial automation systems.
