Why Choose the Carlo Gavazzi EI3015PPOSL-1 Inductive Proximity Sensor?

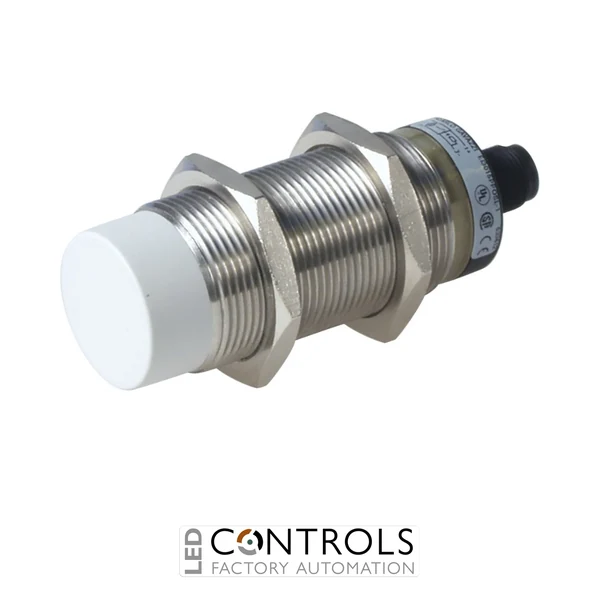

The Carlo Gavazzi EI3015PPOSL-1 is a robust M30 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi EI30 series, this long-body sensor combines a durable stainless-steel housing with a PNP normally open output for dependable integration into DC control circuits.
With a 15 mm rated operating distance, the EI3015PPOSL-1 provides extended-range metal detection without requiring physical contact with the target. Its non-flush sensing configuration is designed for applications requiring increased sensing distance, while solid-state switching provides repeatable operation with no mechanical contacts to wear.
The EI3015PPOSL-1 operates from a 10–40 V DC supply, supports a maximum output current of 200 mA and provides a maximum switching frequency of 100 Hz. A standard M12 plug connection, IP67 protection and -25 to +70 °C operating temperature range make it well suited to industrial machinery, conveyors and automated production equipment.
Key Advantages
- Reliable non-contact detection of metallic targets.
- 15 mm rated sensing distance for extended-range industrial detection.
- Durable M30 stainless-steel housing for demanding applications.
- PNP normally open output for compatible DC automation systems.
- M12 plug connection simplifies installation, servicing and replacement.
- IP67 protection supports dependable operation in industrial environments.
Key Features
- Carlo Gavazzi EI30 series inductive proximity sensor.
- M30 cylindrical threaded stainless-steel housing.
- 15 mm rated operating distance.
- Non-flush mounting configuration.
- Long-body sensor design.
- PNP normally open transistor output.
- 10–40 V DC rated power supply.
- Maximum 200 mA output current.
- Maximum 100 Hz switching frequency.
- M12 plug connection.
- IP67 protection rating.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors use an electromagnetic sensing field to detect conductive metallic targets without requiring physical contact. This operating principle enables repeatable position and presence detection while eliminating the mechanical contact wear associated with conventional limit switches.
The Carlo Gavazzi EI3015PPOSL-1 combines a 15 mm sensing distance with a stainless-steel M30 long-body construction, PNP normally open switching and an M12 plug connection. These characteristics make it a practical choice for machine builders and automation engineers requiring robust, serviceable metal detection in industrial equipment.
Typical Applications
- Industrial machine position and presence detection.
- Conveyor and material handling systems.
- Automated production and assembly machinery.
- Metal component detection and counting.
- Packaging and processing equipment.
- Factory automation and machine control systems.
