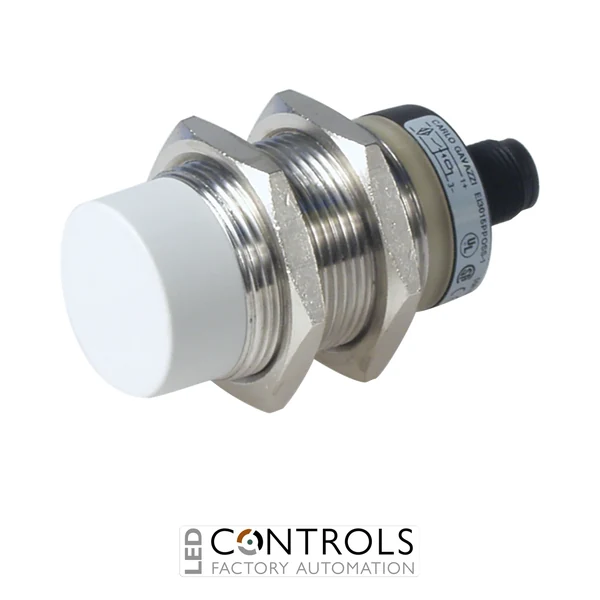

Why Choose the Carlo Gavazzi EI3015PPOSS-1 Inductive Proximity Sensor?
The Carlo Gavazzi EI3015PPOSS-1 is a rugged M30 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machine control and production systems. Part of the proven Carlo Gavazzi EI30 inductive sensor series, it features a stainless steel threaded housing, short-body construction and an M12 plug connection for convenient installation and maintenance.
This sensor provides a 15 mm rated operating distance with a PNP normally open (NO) output. The inductive sensing principle enables accurate object detection without physical contact, reducing mechanical wear and improving reliability in repetitive industrial processes.
With a 10–40 V DC supply range, 200 mA maximum output current, 100 Hz switching frequency and IP67 protection, the EI3015PPOSS-1 is suitable for conveyors, production machinery, machine tools, assembly systems and general factory automation applications.
Key Advantages
- Reliable M30 inductive proximity sensor for industrial automation applications.
- 15 mm sensing distance for extended metallic object detection.
- PNP normally open output for integration with PLC and industrial control systems.
- Durable stainless steel housing for demanding industrial environments.
- Short-body threaded design provides flexible machine installation options.
- M12 plug connection enables quick installation and replacement.
- 100 Hz switching frequency supports reliable automated processes.
- IP67 protection rating provides resistance against dust and moisture ingress.
Key Features
- Carlo Gavazzi EI30 inductive sensor series.
- M30 cylindrical threaded stainless steel housing.
- Short-body sensor construction.
- 15 mm rated operating distance.
- Non-flush mounting configuration.
- PNP normally open (NO) transistor output.
- 10–40 V DC supply voltage.
- 200 mA maximum output current.
- 100 Hz maximum switching frequency.
- M12 plug-in connection.
- LED output indication.
- Short-circuit and reverse polarity protection.
- Operating temperature range from -25 °C to +70 °C.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi EI3015PPOSS-1 detect metallic targets using an electromagnetic sensing field without physical contact. This technology provides repeatable switching performance while eliminating mechanical contact wear found in traditional detection devices.
The EI30 series is designed for machine builders and automation engineers requiring reliable sensing, robust construction and simple electrical integration. The stainless steel M30 housing, extended 15 mm sensing distance and M12 plug connection make the EI3015PPOSS-1 suitable for modern industrial automation systems.
Typical Applications
- Industrial machinery position sensing.
- Conveyor and material handling systems.
- Packaging and production equipment.
- Machine tool automation.
- Metal component detection and counting.
- Assembly and manufacturing systems.
- Process automation equipment.
- OEM machinery applications.
