Why Choose the Carlo Gavazzi EI3015TBCSS Inductive Proximity Sensor?

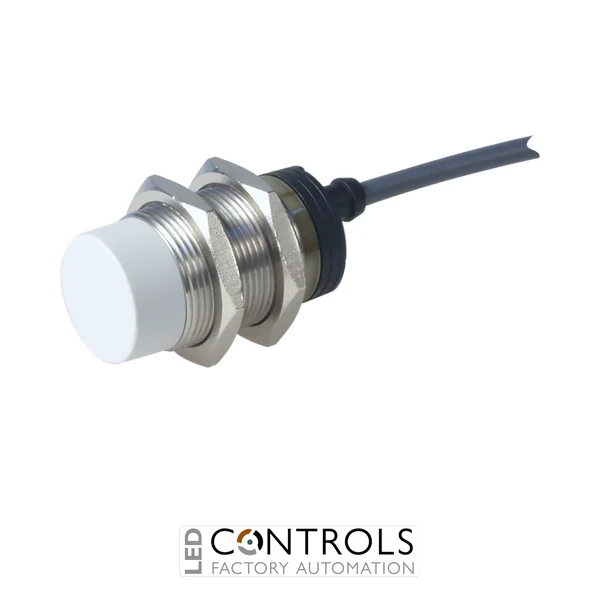

The Carlo Gavazzi EI3015TBCSS is a robust M30 stainless-steel inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi EI30 sensor range, it combines a compact short-body construction with an extended 15 mm sensing distance and factory-fitted cable for straightforward integration into industrial equipment.
The EI3015TBCSS provides a rated operating distance of 15 mm and features a 2-wire SCR normally closed (NC) output. Its inductive sensing principle detects metallic objects without physical contact, helping reduce mechanical wear while providing dependable switching for repetitive position, presence and limit-detection applications.
Operating from a 20–250 V AC supply, the sensor supports a maximum output current of 500 mA and a maximum switching frequency of 25 Hz. Its stainless-steel M30 threaded housing, factory-fitted 2 m cable, IP67 protection and -25 to +70 °C operating temperature range make it well suited to demanding industrial automation applications.
Key Advantages
- Reliable non-contact detection of metallic targets for industrial automation.
- 15 mm rated operating distance provides extended sensing capability.
- 2-wire SCR normally closed output for compatible AC control circuits.
- Durable M30 stainless-steel housing for industrial installations.
- Short-body construction supports installation where mounting depth is limited.
- Factory-fitted 2 m cable simplifies electrical connection.
- 500 mA maximum output current for compatible switching loads.
- IP67 protection supports dependable operation in demanding environments.
Key Features
- Carlo Gavazzi EI30 inductive proximity sensor range.
- M30 cylindrical threaded barrel.
- 15 mm rated operating distance.
- Short-body construction.
- SCR normally closed (NC), 2-wire AC output.
- 20–250 V AC rated power supply.
- 500 mA maximum output current.
- 25 Hz maximum switching frequency.
- Stainless-steel housing.
- Factory-fitted 2 m cable.
- Yellow LED output-status indication.
- Transient protection.
- IP67 ingress protection.
- -25 to +70 °C operating temperature range.
Extended-Range AC Inductive Sensing for Industrial Automation
Inductive proximity sensors detect metallic objects by monitoring changes in an electromagnetic sensing field, allowing targets to be identified without mechanical contact. This contactless operating principle helps reduce physical wear and provides dependable switching for repetitive machine positioning, component detection and process-monitoring duties.
The EI3015TBCSS combines a 15 mm sensing distance with an M30 stainless-steel short body and a 2-wire SCR normally closed switching function. Its wide AC operating range and 2 m cable make it a practical sensing solution for machinery and automation systems using compatible AC control circuits.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Automated assembly and production equipment.
- Packaging and processing machinery.
- Industrial AC machine-control systems.
