Why Choose the Carlo Gavazzi EI3015TBOSL-6 Inductive Proximity Sensor?

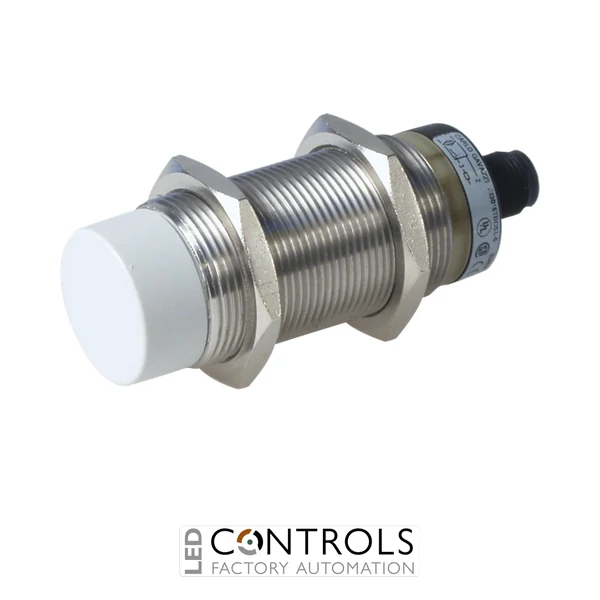

The Carlo Gavazzi EI3015TBOSL-6 is a robust M30 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the established Carlo Gavazzi EI30 series, it combines a stainless steel long-body housing with a two-wire SCR normally open output for dependable switching in industrial AC control applications.
This sensor provides a rated operating distance of 15 mm, giving it extended detection capability where greater clearance between the sensor and metallic target is required. Its M30 threaded construction provides secure machine mounting, while the inductive sensing principle enables repeated detection without physical contact and eliminates the mechanical switching wear associated with conventional limit switches.
With a rated power supply of 20–250 V AC, maximum output current of 500 mA and maximum switching frequency of 25 Hz, the EI3015TBOSL-6 is well suited to industrial AC sensing and machine control. Its M12 connector, stainless steel construction and IP67 protection rating provide a durable, service-friendly sensing solution for demanding industrial environments.
Key Advantages
- Robust M30 inductive proximity sensor for metallic object detection.
- 15 mm rated operating distance provides extended sensing capability.
- Two-wire SCR normally open output for industrial AC control applications.
- 20–250 V AC rated power supply supports a broad range of industrial control voltages.
- 500 mA maximum output current for dependable switching.
- Durable stainless steel long-body housing for demanding industrial environments.
- M12 connector simplifies installation, replacement and maintenance.
- 25 Hz maximum switching frequency for reliable machine sensing.
- Yellow LED provides clear visual indication of output status.
- IP67 protection supports operation in dusty and wet industrial environments.
Key Features
- Carlo Gavazzi EI30 series inductive proximity sensor.
- M30 × 1.5 threaded cylindrical stainless steel housing.
- 15 mm rated operating distance.
- Two-wire SCR normally open (NO) output.
- 20–250 V AC rated power supply.
- 500 mA maximum output current.
- 25 Hz maximum switching frequency.
- M12 connector for convenient electrical connection.
- Long-body construction for flexible machine installation.
- Yellow LED output status indication.
- Transient protection for dependable industrial operation.
- IP67 rated enclosure.
- Operating temperature range from -25 °C to +70 °C.
- CE, UL and CSA approvals.
Inductive proximity sensors such as the Carlo Gavazzi EI3015TBOSL-6 detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable metal object enters the detection zone, allowing machinery to monitor component position, presence and movement while avoiding the mechanical wear associated with contact-operated switches.
The EI3015TBOSL-6 is particularly suited to industrial AC automation systems requiring a two-wire SCR normally open signal and extended target detection. Its M30 stainless steel housing, 15 mm sensing distance, long-body construction and detachable M12 connection make it a practical choice for machine builders, production equipment, conveyors and material handling systems.
Typical Applications
- Industrial machinery position detection.
- Metal component presence sensing.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- Component counting and positioning applications.
- Industrial AC control and automation systems.
