Why Choose the Carlo Gavazzi EI3015TBOSS-6 Inductive Proximity Sensor?

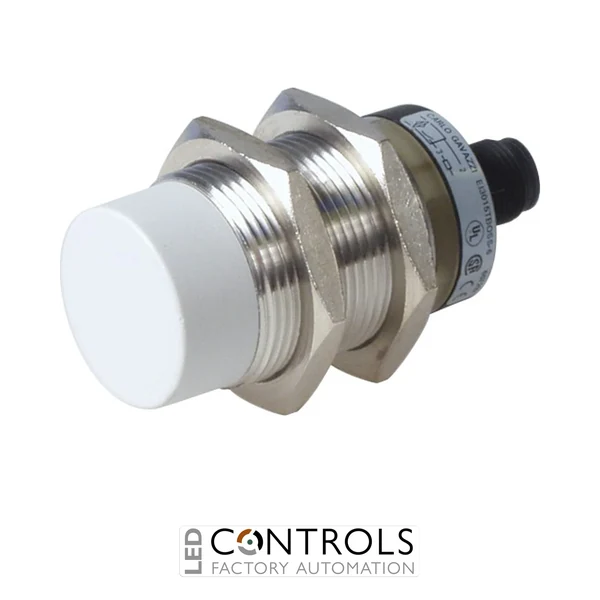

The Carlo Gavazzi EI3015TBOSS-6 is a robust M30 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machinery applications. As part of the Carlo Gavazzi EI series, it combines a durable stainless-steel cylindrical housing with an SCR normally open output and convenient M12 connector.
Designed for demanding industrial environments, the EI3015TBOSS-6 provides a rated sensing distance of 15 mm and operates from a 20–250 V AC supply. Its two-wire SCR output enables straightforward integration into AC control circuits, while the non-contact inductive sensing principle helps minimise mechanical wear compared with conventional limit switches.
The short-body M30 format makes the sensor suitable for installations where mounting space is limited. With a maximum output current of 500 mA, maximum switching frequency of 25 Hz, operating temperature range from -25 °C to +70 °C and IP67 protection, it provides dependable metallic object detection across a wide range of industrial equipment.
Key Advantages
- Reliable non-contact detection of metallic objects for industrial automation.
- 15 mm rated sensing distance for effective proximity detection.
- Durable M30 stainless-steel threaded housing for industrial environments.
- SCR normally open two-wire output for AC control applications.
- M12 connector simplifies installation, replacement and maintenance.
- IP67 protection provides resistance to dust and temporary water immersion.
Key Features
- Carlo Gavazzi EI series inductive proximity sensor.
- M30 cylindrical threaded barrel construction.
- 15 mm rated operating distance.
- 20–250 V AC rated power supply.
- SCR normally open (NO), two-wire output.
- Maximum output current of 500 mA.
- Maximum switching frequency of 25 Hz.
- M12 connector electrical connection.
- Rugged stainless-steel housing.
- Yellow LED status indication.
- IP67 ingress protection.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact between the sensor and moving machinery. This operating principle makes the EI3015TBOSS-6 well suited to repetitive industrial applications where conventional mechanical switches may be subject to contact wear, contamination or frequent maintenance.
The combination of a 15 mm sensing distance, stainless-steel M30 housing and M12 connection makes this sensor suitable for machine builders, control engineers and maintenance teams requiring robust position, presence and movement detection. Its SCR normally open output is designed for integration into compatible AC industrial control circuits.
Typical Applications
- Industrial machinery position and presence detection.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Metal component detection and counting.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- Industrial process and factory automation.
